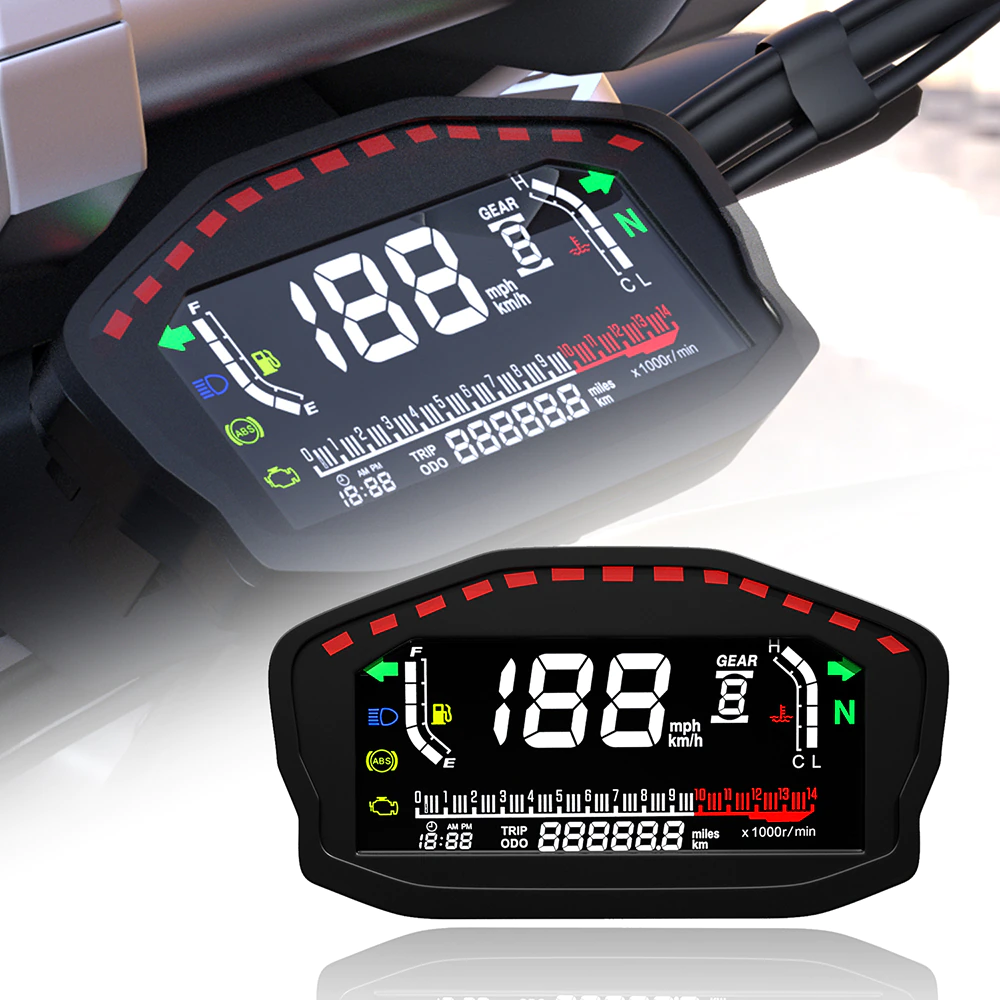

universal digital motorcycle speedometer
The universal digital motorcycle speedometer is for riders building a custom cockpit, replacing a damaged display or modernizing an older motorcycle. It can be a clean upgrade when the bike uses simple wiring and separate speed, rpm and warning-light signals. It is not a guaranteed replacement for every modern CANBUS or immobilizer-integrated dashboard.
Use this page as a compatibility checklist before ordering. A digital speedometer must show speed correctly, fit securely, receive clean power, read the chosen speed sensor and keep the important warning lights visible to the rider.
Who this speedometer is for
A universal digital motorcycle speedometer works best on simpler motorcycles, custom builds, older bikes, pit bikes, cafe racers and projects where the original cluster is not required for immobilizer or ECU communication. If the bike does not start with the original cluster unplugged, stop and check whether the OEM dashboard is part of the electronic network.
| Bike situation | Fitment outlook | Check first |
|---|---|---|
| Older motorcycle with simple wiring | Usually suitable with careful wiring. | Speed sensor, rpm signal and warning lights. |
| Custom build | Good if required functions are planned. | Bracket, wheel circumference and power feed. |
| Modern CANBUS motorcycle | High risk for universal replacement. | OEM cluster role and wiring diagram. |
| Scooter with immobilizer display | Often unsuitable as direct replacement. | Dealer/service information before removal. |
Compatibility checks before ordering
Before buying the universal digital motorcycle speedometer, list every function the old dashboard provides. Speed and backlight are not enough. Check neutral, indicators, high beam, oil warning, fuel level, temperature, RPM, ABS and engine warning lights. If one of these functions is safety-critical and the new meter cannot support it, choose another solution.
- Confirm operating voltage and whether a permanent memory feed is needed.
- Check speed sensor type and magnet/pickup mounting options.
- Measure wheel circumference for calibration.
- Confirm RPM signal compatibility and pulse settings.
- Check fuel sender range if fuel level will be connected.
- Verify indicator, high beam, neutral and warning light input polarity.
Installation notes
Mount the display where it is easy to read but does not block the rider’s view or steering movement. Route wiring with enough slack for full handlebar lock, but not so much that it rubs on the frame or headstock. Use a fused ignition feed, proper ground, heat shrink and weather-resistant connectors.
Set the wheel circumference carefully. Koso installation material explains that the speed displayed depends on the circumference and sensing-point settings, and that the setting should be reset when tyre size changes. That principle applies to any similar magnetic-sensor speedometer.
| Install step | Good practice | Avoid |
|---|---|---|
| Speed sensor | Secure bracket and close, non-contact magnet pass. | Flexible bracket or changing sensor gap. |
| Power feed | Fused ignition-switched supply. | Unfused direct battery wiring. |
| Warning lights | Test polarity and each function separately. | Joining unknown wires together. |
| Final calibration | Compare speed on a safe road with a known reference. | Assuming default wheel settings are correct. |
Post-installation test routine
After wiring the display, test the motorcycle before refitting all trim. Turn the bars fully left and right while watching the harness. Start the engine and confirm that the display does not reset from vibration or charging voltage changes. Test indicators, high beam, neutral, warning lights and backlight one at a time.
On the first ride, compare the speed reading with a known-good reference on a safe road. If the speed is wrong, adjust circumference or pulse count rather than accepting a bad reading. Recheck the sensor bracket after the first ride because vibration can change the pickup gap.
Guides and references
Read the full motorcycle dashboard upgrade guide before ordering. Riders adding cameras or cockpit accessories should also see the motorcycle action camera setup guide. You can compare related units in the motorcycle speedometers category.
External reference points
Koso’s FAQ explains the limitation of universal meters on CANBUS motorcycles and the need for a wiring diagram: Koso universal meter FAQ. Koso speedometer installation material explains magnetic sensor alignment, wheel circumference and sensing point settings: Koso motorcycle speedometer manual.
Responsible buying advice
Buy a universal digital motorcycle speedometer only after confirming the original cluster is not required for the bike to run safely. The best installation keeps the important warnings visible, gives accurate speed, protects the wiring and remains readable in daylight and at night.
If the motorcycle is modern, injected, ABS-equipped or immobilizer-controlled, get the wiring diagram before disconnecting the factory display.
