Fiat Grande Punto bulb list: complete practical guide for headlights, rear lights, indicators and interior lamps
Fiat Grande Punto bulb list is one of those simple things that becomes annoying when you are standing in a parts shop, the dashboard says a light has failed, and three different catalogues give three different answers. The Grande Punto was sold across different years, trims and markets, so the safest way to buy bulbs is to understand the usual fitments, check the lamp holder on your own car, and match the voltage, wattage, base type and light position before fitting anything.
This guide is written like a workshop note for owners, not like a parts catalogue dumped onto a page. Fiat Grande Punto bulb list information is useful only if it helps you avoid mistakes: mixing up H4 and H1 headlight bulbs, fitting a clear bulb where an amber bulb is needed, installing LED replacements that trigger bulb warnings, touching halogen glass with bare fingers, or buying a rear-light bulb that has the wrong pin offset. The tables below cover the common Grande Punto and Punto Evo-style lighting layout, but always confirm against the bulb already fitted to your car.

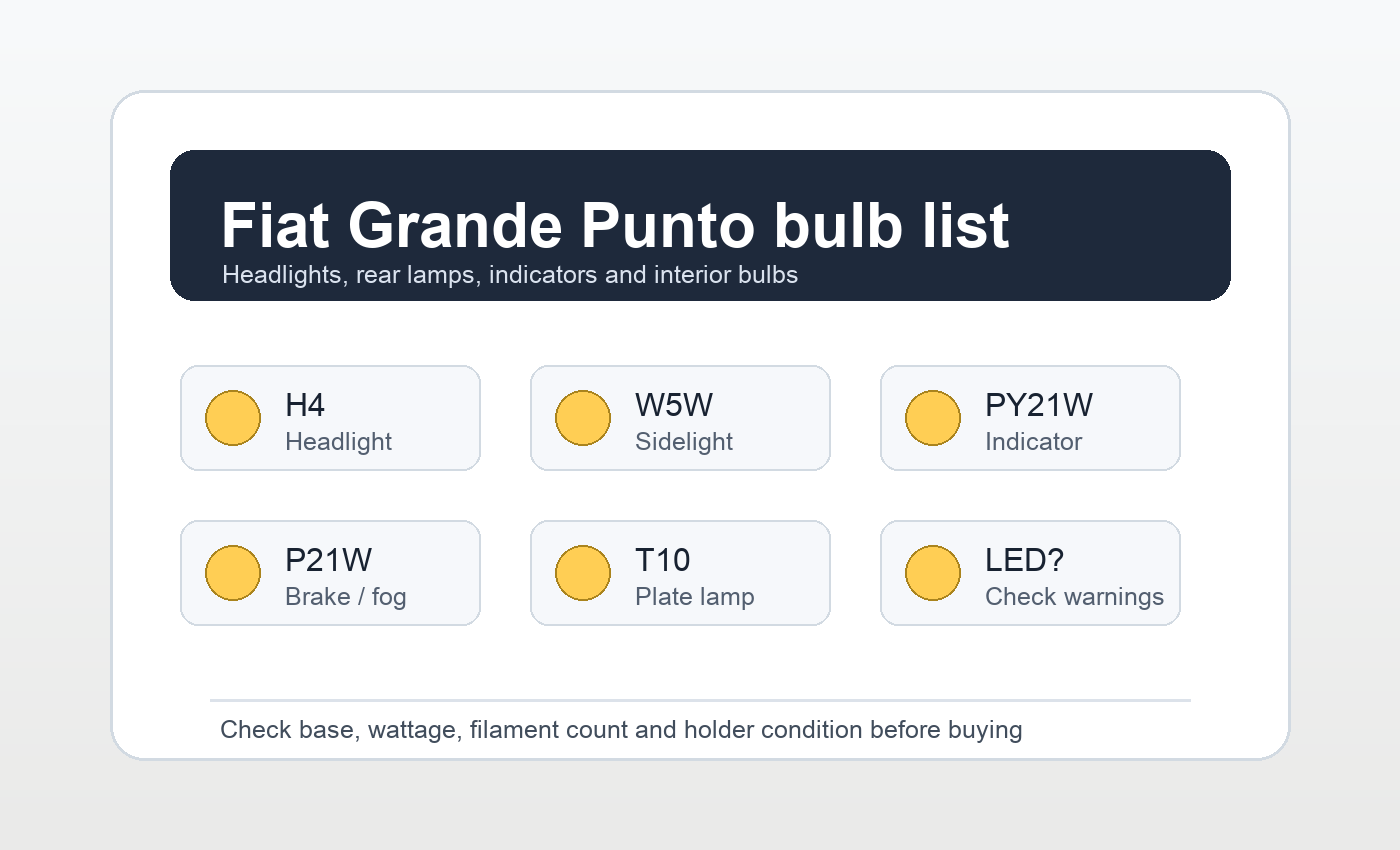

Quick answer: common bulb types on the Fiat Grande Punto
Fiat Grande Punto bulb list entries most owners need are H4 for the main headlight bulb on many halogen headlamp units, W5W for small sidelights and many interior/number plate positions, PY21W amber bulbs for many front and rear indicators, P21W for several brake or rear fog/reverse positions depending on lamp design, and P21/5W for combined tail/brake applications on some rear clusters. Some versions use separate bulbs and some markets vary, so treat the table as a practical starting point and verify the holder.
If your car has factory xenon, aftermarket headlights, different rear lamps, or a Punto Evo front/rear conversion, the exact answer can change. Fiat Grande Punto bulb list checks should always include the year, body style, headlamp type, left-hand or right-hand traffic market, and whether the car has standard halogen lamps or modified units. A two-minute inspection saves buying the wrong bulb twice.
| Light position | Common bulb type | Typical spec | Owner check |
|---|---|---|---|
| Main dipped/main beam in many halogen units | H4 | 12V 60/55W | One three-pin bulb serving dipped and main beam |
| Front sidelight / position light | W5W / T10 | 12V 5W | Small wedge bulb in the headlamp housing |
| Front indicator | PY21W | 12V 21W amber | Offset-pin amber bulb or amber lens depending on unit |
| Number plate lamps | W5W / T10 | 12V 5W | Check both lenses because heat can mark old holders |
Why the bulb list can vary by year and market
Fiat Grande Punto bulb list searches often give different answers because Fiat sold the car in several versions and because many cars have had lamps changed over the years. A headlamp replaced after a small accident may not be the exact same supplier as the original. A rear cluster may have been swapped for a used part. A previous owner may have installed LED sidelights, aftermarket projector lamps, tinted rear lamps or a different bumper with different fog lights.
There is also a naming problem. Some people call every Grande Punto a Punto Evo. Some parts catalogues mix Grande Punto, Punto, Punto Evo and Punto 2012 facelift data. Some bulb sellers show “fits Fiat Punto” without separating generations. Fiat Grande Punto bulb list information should be paired with a visual check of your actual lamp. If the bulb base, pins, wattage or connector does not match, the listing is wrong for your car.
Front headlight bulbs
Fiat Grande Punto bulb list work usually starts at the front, because dipped beam failure is the most urgent and most visible problem. On many halogen Grande Punto headlights, the H4 bulb handles both dipped and main beam through two filaments. That means one bulb can fail partially: you may lose dipped beam but still have main beam, or the other way around. Do not assume the stalk, relay or fuse is bad until you inspect the bulb.
When replacing a halogen bulb, disconnect the ignition, let the lamp cool, remove the rear cover, release the retaining clip, and pull the connector straight off. Fit the new bulb without touching the glass. Skin oil creates hot spots on halogen glass and can shorten bulb life. If you accidentally touch it, clean it with alcohol and a lint-free cloth. Fiat Grande Punto bulb list accuracy helps you buy the bulb, but careful fitting is what keeps it alive.
| Front lamp | Likely bulb | Symptom when failed | Fitting note |
|---|---|---|---|
| Dipped/main beam | H4 60/55W on many halogen units | Low beam or high beam missing on one side | Check the three-pin connector for heat damage |
| Sidelight | W5W/T10 | Small position light out, warning on some cars | Use the correct wedge size; do not force the holder |
| Indicator | PY21W amber | Fast flashing or warning message | Amber bulb often has offset pins |
| Front fog light if equipped | Often H1 or model-specific halogen | Fog lamp out on one side | Access may be from arch liner or lower bumper area |
Rear light bulbs
Fiat Grande Punto bulb list checks at the rear need a little patience because rear clusters often use several similar 21W bulbs. A brake light, rear fog light, reverse light and indicator may look similar at first glance, but the bulb color, pin position and filament count matter. A dual-filament tail/brake bulb is not the same as a single-filament 21W bulb even if it seems to fit loosely.
Remove the rear lamp carefully, support the lens, and inspect the bulb carrier. Look for melted plastic, green corrosion, loose earth tracks and blackened bulb bases. If the same rear bulb keeps failing, the fault may be vibration, water ingress, poor contact pressure or an overheating holder rather than just a bad bulb. Fiat Grande Punto bulb list tables tell you what should be fitted; the carrier condition tells you why it failed.
| Rear lamp function | Common bulb type | What to verify | Common mistake |
|---|---|---|---|
| Brake light | P21W or P21/5W depending on cluster | Single or dual filament holder | Fitting a single-filament bulb where dual filament is needed |
| Rear tail light | R5W, W5W or P21/5W depending on design | Brightness and holder shape | Using a 21W bulb in a low-wattage tail position |
| Rear indicator | PY21W amber | Amber glass and offset pins | Installing a clear P21W in an amber-required position |
| Reverse light | P21W on many cars | Clear lens and single filament | Confusing it with rear fog position |
| Rear fog light | P21W on many cars | Correct side and red output | Assuming both sides have working fog lamps |
Side repeaters, number plate lamps and interior bulbs
Fiat Grande Punto bulb list jobs are not only about headlights. Side repeaters, number plate lamps, boot lamps and interior lamps are common MOT or inspection failures because owners forget them. W5W/T10 wedge bulbs are common in small positions, but check the holder before ordering a pack. Some aftermarket side repeaters use sealed LED units, while original-style repeaters may use a small wedge bulb.
Number plate lamps deserve special care. The screws can corrode, plastic lenses become brittle, and cheap LED bulbs can flicker or create warning messages. If the lens is cloudy or heat-marked, replacing only the bulb may not restore a clean white output. Fiat Grande Punto bulb list choices should include the condition of the lens and holder, not only the bulb code.
| Small lamp position | Common bulb | Practical note |
|---|---|---|
| Number plate lamp | W5W/T10 | Replace in pairs if one lens is already yellow or dim |
| Side repeater | Often W5W/T10 or sealed unit | Check if the repeater is original or aftermarket LED |
| Interior courtesy lamp | Festoon or W5W depending on lamp | Measure the old bulb if using festoon replacements |
| Boot lamp | Small wedge or festoon depending on trim | Check switch operation if a new bulb still does not light |
LED upgrades: when they help and when they cause trouble
Fiat Grande Punto bulb list searches often lead owners to LED conversion kits. LEDs can be useful for interior lamps, number plate lamps, sidelights and sometimes reversing lights, but they are not automatically legal or reliable in every position. Headlight LED conversions in halogen reflectors can scatter light, dazzle other drivers and fail inspection depending on your country. Brake and indicator LEDs can trigger bulb warnings or hyperflash if the car expects a halogen load.
If you want LED bulbs, buy quality CAN-bus compatible lamps from a known supplier, keep the old halogen bulbs in the glovebox, and test the car in daylight and darkness. Check beam pattern against a wall. Check that indicators flash at the correct speed. Check that the brake lights are bright but not delayed. Fiat Grande Punto bulb list upgrades should improve visibility without creating dashboard warnings or illegal glare.
Warning messages, fast flashing and bulbs that keep failing
Fiat Grande Punto bulb list diagnosis becomes more interesting when the car reports a bulb fault but the bulb looks fine. Start with the simple checks: remove the bulb, inspect the filament, clean the contacts, check the holder spring tension, and swap left to right if the bulb type is the same. If the fault follows the bulb, replace it. If the fault stays on the same side, inspect the holder, wiring and earth path.
Fast indicator flashing usually means a failed indicator bulb or incorrect LED load. A rear lamp that changes brightness when you press the brake can point to a bad earth. A bulb that fails every few weeks can mean water ingress, vibration, poor-quality bulbs or a charging voltage problem. If you are also dealing with diagnostic messages, the guides on 07E9 code, Chinese car radio apps and Dacia Duster warning lights are useful reminders that vehicle electrical faults should be checked methodically rather than guessed from one symptom.
| Symptom | Likely cause | First check |
|---|---|---|
| Fast indicator flash | Failed bulb, wrong wattage or LED load issue | Check all indicator bulbs and hazard operation |
| Bulb warning but lamp works | Resistance mismatch, poor contact or early filament failure | Clean contacts and fit correct wattage halogen bulb |
| Rear lights behave strangely | Bad earth or corroded bulb carrier | Inspect rear lamp connector and ground track |
| New bulb fails quickly | Water ingress, vibration, cheap bulb or overvoltage | Inspect seals and measure charging voltage |
How to buy the correct replacement bulb
Fiat Grande Punto bulb list shopping should be done with the old bulb or a clear photo of it in your hand. Read the marking on the metal base or glass, check pin offset, and compare wattage. For halogen headlights, buy reputable brands and replace pairs if the other side is old, because light color and brightness can differ. For brake lights and indicators, do not fit a lower-wattage bulb just because it slots in; the car may monitor current draw and the lamp may be too dim.
A useful parts-shop routine is to say the car model, year, body type and lamp position, then still compare the bulb physically before paying. If ordering online, avoid listings that say only “Fiat Punto all models.” Look for the exact base type. Fiat Grande Punto bulb list accuracy matters most when the car is used at night, in rain, or for inspection, where the wrong bulb can become a safety issue rather than a small inconvenience.
Safe replacement method
Fiat Grande Punto bulb list work is simple, but bulbs and holders are fragile. Switch off the lights and ignition. Let hot bulbs cool. Use gloves for halogen bulbs. Do one side at a time so you can compare orientation with the other side. If access is tight, do not pull wiring by force; remove the cover, move the reservoir neck if designed to move, or work through the correct access panel. Keep dropped clips and covers out of the engine bay.
After fitting, test every function before driving: sidelights, dipped beam, main beam, indicators, hazards, brake lights, reverse light, rear fog, front fog if fitted, number plate lamps and interior lamps. Then walk around the car with someone pressing the brake pedal. Fiat Grande Punto bulb list replacement is finished only when the lamp works, the warning is gone, and the beam or light output is correct.
When to ask a mechanic or auto electrician
Fiat Grande Punto bulb list repairs become workshop jobs when connectors are melted, rear lamp carriers are corroded, fuses blow repeatedly, water keeps entering a lamp, the body computer reports false bulb failures, or multiple lights fail at once. A mechanic can load-test circuits, check voltage drop, inspect earth points, read body module faults, and repair damaged holders. Replacing bulbs again and again is not diagnosis.
If your Grande Punto has accident repairs, aftermarket headlights, LED conversion kits, towbar wiring or previous electrical modifications, be extra careful. The official owner information from Fiat owner support is the best place to start for vehicle documentation, while safety and lighting rules should be checked through your national transport authority or a reference such as the UK MOT inspection manual if you are working to UK-style inspection standards.
FAQ
Does every Fiat Grande Punto use H4 headlight bulbs?
Fiat Grande Punto bulb list data commonly shows H4 for many halogen headlights, but you should still verify your own headlamp. Some versions, markets or modified units can differ, and replacement headlights may not match the original catalogue exactly.
Can I fit LED bulbs in the headlights?
LED headlight conversions are not automatically suitable for halogen reflectors. Even if an online Fiat Grande Punto bulb list says an LED replacement fits the socket, the beam pattern, legality and glare risk must be checked before road use.
Why does the dashboard still show a bulb warning after replacement?
The bulb may have the wrong wattage, the holder may have poor contact, an LED may draw too little current, or there may be corrosion in the connector. Use the Fiat Grande Punto bulb list to confirm the bulb, then inspect the circuit if the warning remains.
Should I replace bulbs in pairs?
For headlight bulbs, replacing in pairs is often sensible because the older side may be dimmer and close to failure. For small lamps, use the Fiat Grande Punto bulb list to buy the correct type and replace the matching side if brightness or color differs.
What should I check before ordering online?
Check the old bulb base, wattage, filament count, color, pin offset and lamp position. A generic Fiat Grande Punto bulb list is useful, but the bulb in your hand is the final confirmation before ordering.
Final practical takeaway
Fiat Grande Punto bulb list information is most useful when it is combined with common sense: identify the lamp position, remove or inspect the old bulb, match the base and wattage, avoid unsafe LED shortcuts, clean contacts, and test every light after fitting. The Grande Punto is not difficult to service, but the wrong bulb can create warnings, poor visibility, fast flashing or failed inspections.
Keep a small note in the glovebox with the bulb types you actually confirmed on your car. The next time a lamp fails at night or before an inspection, you will not be guessing from conflicting catalogues. With a confirmed bulb note, a pair of gloves and a careful check of the holder, most lighting jobs can be handled cleanly at home.
