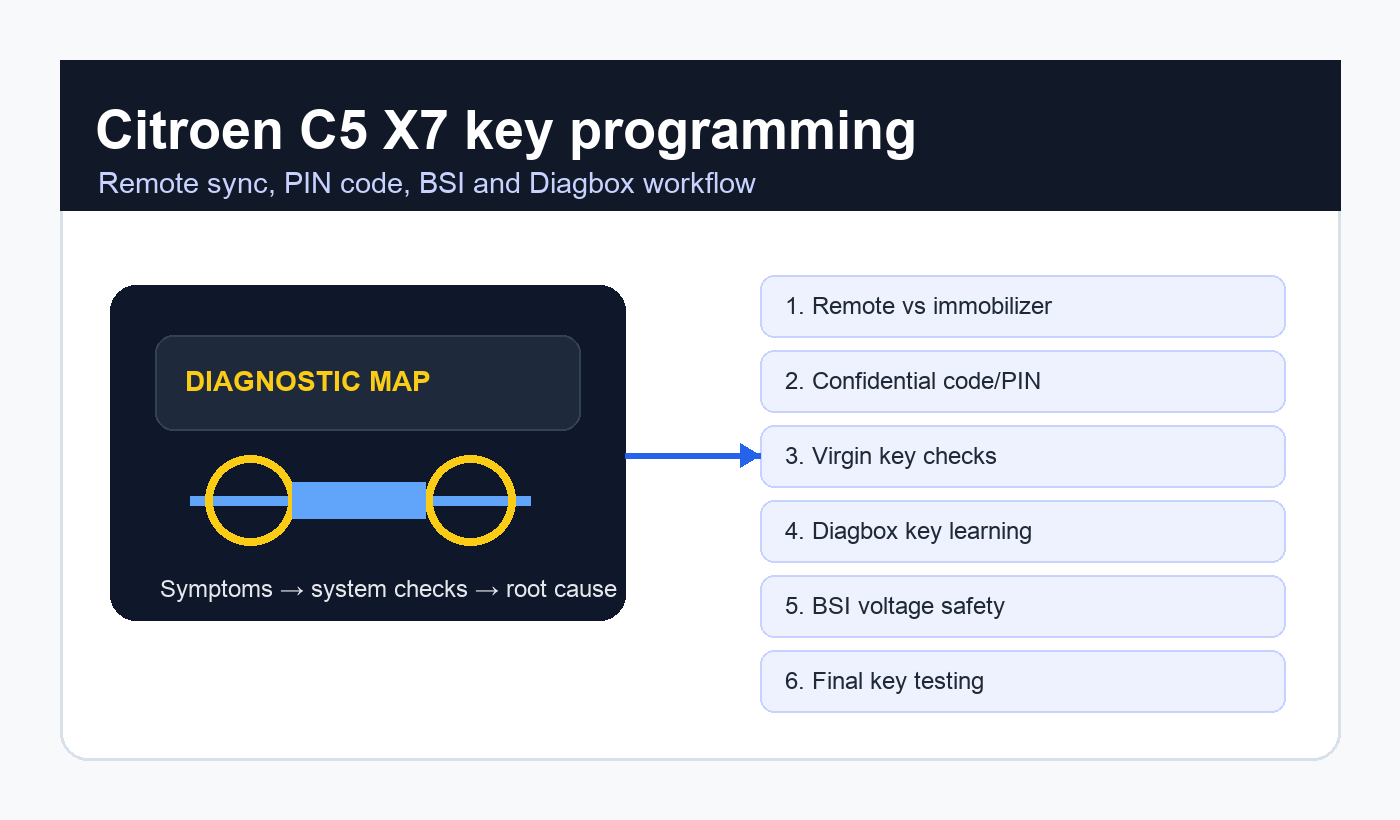

Citroen C5 X7 key programming: complete guide to remotes, transponders, PIN codes and Diagbox
Citroen C5 X7 key programming is one of those jobs that sounds simple until the owner discovers that a C5 X7 key is not just a cut blade with a battery inside. It is a remote control, a transponder, an immobilizer identity, a mechanical emergency key and, on some cars, part of a wider comfort and security system. A new key can fail because the blade is wrong, the remote is not synchronized, the transponder is not learned, the confidential code is missing, or the diagnostic tool is trying to write to the wrong vehicle configuration.
This guide explains Citroen C5 X7 key programming for owners, locksmiths and careful DIY diagnosticians who want to understand what must happen before money is spent on a key shell, a remote board or a dealer visit. It covers the C5 X7 generation, key types, remote reinitialization, transponder coding, PIN/confidential code issues, Lexia and Diagbox workflow, BSI precautions, used-key traps and the difference between a dead remote and an immobilizer no-start.
Quick answer
The short Citroen C5 X7 key programming answer is this: remote synchronization may be possible after a battery change, but adding or replacing a key normally requires a compatible blank key, correct blade cutting, the vehicle confidential code/PIN, and a PSA-capable diagnostic tool such as Lexia or Diagbox to teach the transponder to the car. A used remote can sometimes be reused only for shell or blade parts; the locked immobilizer transponder is usually the hard limit.
Keyword and search intent research
Exact live SEO volume was not available in this environment, so the analysis is based on the supplied keyword export, current source checks and search-intent grouping. Source variants include kodowanie kluczyka Citroen C5 X7, C5 X7 key coding, Citroen C5 remote programming, C5 immobilizer PIN, Diagbox key programming, Lexia key coding, C5 X7 key fob not working, remote reinitialisation, BSI key learning and transponder coding. The intent is practical and urgent: the user is locked out, has lost a key, replaced a battery, bought a spare, or needs to know whether a locksmith can code it.
| Intent group | Associated keywords | What the reader needs |
|---|---|---|
| Remote problem | key fob not working, remote sync, battery replacement | Reinitialize the remote without confusing it with immobilizer coding. |
| New spare key | spare key, key blank, blade cutting, transponder chip | Know which parts must be new and compatible. |
| Diagnostic coding | Diagbox, Lexia, PP2000, BSI, confidential code | Understand the learning procedure and required PIN. |
| No-start issue | immobilizer fault, key not recognized, anti-theft system | Separate remote locking from engine authorization. |
| Used key confusion | second hand key, virgin key, used fob, remote board | Avoid buying parts that cannot be learned to the car. |
What the C5 X7 actually is
A precise Citroen C5 X7 key programming article has to start with the model. Enthusiasts often use C5 X7 for the second-generation Citroen C5 sold from 2008 in saloon and Tourer forms. The wider Citroen C5 history is useful because older first-generation C5 procedures and parts are often mixed into online advice for the later X7. The vehicle generation, BSI software and key style matter.
For broad model context, the Citroen C5 reference identifies the second-generation C5 and its place in the model line. For official documentation access, PSA/Stellantis service information is routed through Service Box, which is the higher-authority starting point for procedures and parts identity.
Remote synchronization is not full key programming
The most common Citroen C5 X7 key programming misunderstanding is the difference between remote reinitialization and immobilizer programming. Remote synchronization teaches the car and fob button operation to talk again after a weak battery or loss of sync. Immobilizer programming teaches the car that a transponder is authorized to start the engine. One affects locking. The other affects starting.
If the buttons do not lock the doors but the car starts, you are probably dealing with remote synchronization, battery, microswitch, antenna or receiver issues. If the starter turns but the engine is not authorized, or the dash reports an anti-theft fault, the transponder side becomes the priority. A complete Citroen C5 X7 key programming plan treats those as two separate systems.
| Symptom | Likely area | Next check |
|---|---|---|
| Buttons do nothing, engine starts | Remote locking side | Battery, fob buttons, sync, receiver. |
| Buttons work, engine starts | Normal operation | No programming needed. |
| Buttons work, engine will not authorize | Immobilizer/transponder | Scan BSI/engine ECU and check key status. |
| No buttons, no start | Battery, key board, transponder, BSI, vehicle voltage | Diagnose before buying parts. |
| Spare key starts but remote fails | Remote section only | Reinitialize or repair fob electronics. |
Parts needed before coding a spare
A proper Citroen C5 X7 key programming job normally starts before the diagnostic tool is connected. You need the correct key blade profile, a compatible remote frequency for the market, a suitable transponder, a good fob battery, and the confidential code. The wrong blank may look identical on a marketplace photo but fail at the blade, radio or immobilizer stage.
The safest route is to identify the car by VIN, match the original key type, cut the blade accurately, and only then program the transponder. A cheap unverified key can waste more time than a better blank purchased from a specialist who understands PSA key families.
| Item | Why it matters | Failure if wrong |
|---|---|---|
| Blade profile | Must mechanically turn lock/ignition or emergency lock | Key cannot operate the lock. |
| Remote frequency | Must match market receiver | Buttons never synchronize. |
| Transponder | Must be compatible and learnable | Engine remains immobilized. |
| Confidential code | Required for key learning | Diagbox cannot authorize coding. |
| Stable battery support | Protects BSI during session | Coding interruption or module fault risk. |
The confidential code or PIN
The central obstacle in Citroen C5 X7 key programming is often the PIN, sometimes called the confidential code. It is not the radio code and it is not printed on the key shell. It is the security code used by the diagnostic session to authorize key learning. Without it, a locksmith or dealer may need to retrieve the code through authorized channels or advanced specialist methods.
Do not guess the PIN. Repeated wrong security attempts can lock out a session or create unnecessary delay. If the car came with a code card, verify it belongs to that VIN. If it did not, plan the job with a professional who can obtain or extract the correct code legally and safely.
In practical terms, Citroen C5 X7 key programming should be scheduled only after the PIN question is solved, because the best blank key and the best diagnostic tool still cannot complete security learning without authorization.
Diagbox and Lexia workflow
Most serious Citroen C5 X7 key programming work uses PSA diagnostic software. The technician connects to the vehicle, identifies the BSI/body computer, enters the confidential code, selects key learning, declares the number of keys to be programmed and presents each key in sequence. On many PSA systems, all keys that should continue working must be present during the learning session.
That last point is important. If you program only one key when the procedure expects the full set, an old spare may stop starting the car. A disciplined Citroen C5 X7 key programming session gathers every working key before beginning.
Typical diagnostic sequence
A typical workshop sequence is: stabilize voltage, run a diagnostic scan, confirm VIN and BSI communication, check existing key count if available, enter the confidential code, select replacement/learning of keys, follow tool prompts, test every key for start authorization, then synchronize or test remote locking. The exact screen wording varies by software version.
BSI precautions before any key learning
A careful Citroen C5 X7 key programming procedure respects the BSI. The body computer manages security, locking, wake-up states and many comfort functions. Low voltage, impatient ignition cycling or interrupted coding can turn a simple key job into a broader electrical diagnosis. Connect a stable battery maintainer and avoid opening doors, pressing buttons or disconnecting equipment mid-procedure unless instructed.
Owners often underestimate voltage. A battery strong enough to unlock doors may still dip during a diagnostic session. On an older C5 X7 with many electronic systems, stable supply is a practical requirement, not workshop theatre.
Can a used C5 X7 key be programmed?
The honest Citroen C5 X7 key programming answer for used keys is usually disappointing. The shell, blade carrier and sometimes buttons can be useful as parts, but an already learned immobilizer transponder is often locked to the original vehicle and cannot simply be taught to another C5. Some specialists can renew certain electronics, but a random used key is risky unless you know exactly what component you are buying.
If the seller promises “just code it with Diagbox,” ask whether the transponder is virgin, whether the remote frequency matches, and whether the board is confirmed compatible with C5 X7. Vague answers are a warning sign.
| Key source | Pros | Risks |
|---|---|---|
| Dealer-supplied key | VIN-matched and reliable | Higher cost, appointment needed. |
| Automotive locksmith key | Often faster and practical | Quality depends on blank and tooling. |
| Aftermarket virgin key | Lower cost if correct | Compatibility must be checked carefully. |
| Used marketplace key | Cheap shell parts | Locked transponder, wrong frequency, worn buttons. |
| Repaired original key | Keeps known compatibility | May not solve lost transponder or board damage. |
Remote reinitialization after battery replacement
Some owners search Citroen C5 X7 key programming after replacing a coin cell in the fob. In that situation, full immobilizer coding may not be needed. The usual concept is to insert the key, switch ignition on, press a lock or unlock button for a short period, switch off, remove the key and test the remote. Exact timing and button choice can vary, so the owner’s manual remains the reference.
If the remote worked before the battery change and the engine still starts, begin with battery polarity, battery quality, contact tension, button feel and reinitialization. Do not pay for immobilizer coding until the symptom proves that starting authorization is affected.
This is where Citroen C5 X7 key programming becomes a diagnostic decision rather than a fixed recipe: the same plastic fob can have a healthy transponder and a dead remote circuit, or the opposite.
No-start after key work
If Citroen C5 X7 key programming ends with a no-start, slow down. Check whether the immobilizer warning is present, whether the starter cranks, whether the engine ECU communicates, whether the BSI recognizes a key, and whether the original key still works. A no-start after key work can be caused by an unlearned transponder, wrong key type, BSI communication issue, low battery or unrelated fault exposed during the session.
For general scanner-language confusion, our OBD2 protocol list guide helps explain why the tool and vehicle network must communicate correctly before diagnosis is trusted.
How to brief a locksmith or dealer
A professional Citroen C5 X7 key programming appointment goes better when the owner brings the VIN, registration documents, every existing key, the confidential code if available, and a clear symptom history. Say whether the problem is lost key, spare key addition, remote not locking, key battery changed, no-start, or water-damaged fob.
Ask whether the quote includes blade cutting, transponder learning, remote testing and verification of all keys. If the car has only one working key, explain that upfront. Losing the last working key usually makes the job more urgent and more expensive.
| Bring to appointment | Reason | Owner note |
|---|---|---|
| All keys | They may need to be relearned together | Do not leave a spare at home. |
| VIN and proof of ownership | Security requirement | Dealer/locksmith may refuse without it. |
| Confidential code | Speeds authorization | Verify it belongs to the car. |
| Symptom notes | Prevents wrong diagnosis | Remote fault and no-start are different. |
| Battery condition | Supports stable coding | Charge weak vehicle battery first. |
DIY limits
DIY Citroen C5 X7 key programming is realistic for understanding symptoms, replacing a fob battery, reinitializing a remote and preparing the correct information. It becomes less friendly when confidential code access, transponder learning and BSI security are involved. A clone diagnostic interface with unstable software can be more expensive than a locksmith if it interrupts a security procedure.
The owner who wants to DIY should practice reading faults and identifying modules before attempting key learning. If basic BSI communication is unreliable, stop there. Security coding should not be the first experiment with an unfamiliar diagnostic setup.
A sensible DIY boundary for Citroen C5 X7 key programming is to diagnose, document and prepare, then hand the security-writing step to a specialist if the tools, PIN or voltage support are uncertain.
Cost factors
The price of Citroen C5 X7 key programming varies because the job may be a simple remote reinitialization, a spare key addition, a lost-all-keys recovery, a damaged BSI investigation or a wrong-part correction. The cheapest advertised key price rarely includes the whole job. Blade cutting, PIN access, diagnostic time, travel and verification all matter.
Owners comparing quotes should ask for the finished outcome: a cut key that starts the car, locks/unlocks remotely where applicable, and leaves all existing keys working. That is more useful than comparing only the cost of the blank.
When comparing quotes for Citroen C5 X7 key programming, also ask what happens if the supplied aftermarket key is incompatible, because responsibility for the part can change the final bill.
Common mistakes
The biggest Citroen C5 X7 key programming mistake is buying a used key and assuming software can make it new. The second is confusing remote sync with immobilizer coding. The third is starting without the confidential code. The fourth is programming only one key when all keys should be present. The fifth is ignoring battery voltage during a BSI security session.
For a comparable immobilizer topic, our Opel Mokka key programming guide shows why modern key work is part electronics, part security authorization and part mechanical key cutting.
Diagnostic checklist
A structured Citroen C5 X7 key programming checklist prevents wrong spending. First, identify the symptom. Second, test the existing key mechanically and electronically. Third, verify vehicle battery health. Fourth, scan BSI and engine ECU. Fifth, confirm the confidential code. Sixth, source a correct virgin key. Seventh, code all keys in one session. Eighth, test remote locking and engine start with every key.
If the issue is an electronic key warning rather than a Citroen-specific learning session, our Toyota Corolla electronic key system fault article is useful for understanding how dashboard wording can point to battery, antenna, receiver or authorization problems rather than the key alone.
That final test is part of Citroen C5 X7 key programming, not a courtesy: every key should lock, unlock where applicable and start the engine before the job is considered complete.
Frequently asked questions
Can I program a C5 X7 key with only the buttons?
No, not for full immobilizer learning. Citroen C5 X7 key programming may include a button-based remote reinitialization after battery replacement, but adding a new start-authorized key normally requires diagnostic access and the confidential code.
Do I need Diagbox?
For most full key learning, yes, a PSA-capable diagnostic path is needed. Some locksmith tools can perform the same security function, but the principle is the same: the BSI must authorize and learn the transponder.
Will a used key from another C5 work?
Usually not as a complete plug-and-play key. The shell may be useful, but the learned transponder is the common obstacle. Buy a correct virgin key or work with a specialist who can confirm renewability.
Why does my key start the car but not unlock it remotely?
The immobilizer transponder can work while the remote section fails. Battery, button contacts, board damage, frequency mismatch and remote synchronization are the first areas to check.
Can a locksmith do the job instead of a dealer?
Yes, many automotive locksmiths can handle Citroen C5 X7 key programming if they have the correct key stock, cutting equipment, PSA diagnostic capability and legal access to the required security code.
Should I erase old lost keys?
If a key is lost and could be used to steal the vehicle, discuss deleting or not relearning that key during the session. Security planning is part of the job, not an afterthought.
Final verdict
Citroen C5 X7 key programming is best treated as a controlled security procedure rather than a quick internet trick. If the remote only lost synchronization, a manual reinitialization may solve it. If a new spare or replacement key must start the car, expect correct parts, a cut blade, a confidential code, a PSA-capable diagnostic session and careful testing of every key.
The practical path is simple: identify the exact C5 X7, separate remote symptoms from immobilizer symptoms, avoid used-key traps, protect the BSI with stable voltage, and work from the official documentation or a competent locksmith. Done that way, Citroen C5 X7 key programming becomes predictable instead of expensive guesswork.
