Citroen C3 key reset: a practical guide to remote sync, battery faults and immobilizer problems

Citroen C3 key reset is a common search because a small key problem can make a simple car feel completely unusable. The remote may stop locking the doors, the dashboard may show a key or immobilizer warning, the car may crank but not start, or the buttons may work only when you stand close to the driver’s door. The temptation is to look for one magic reset sequence, but the correct fix depends on what has actually failed.

A Citroen C3 key reset can mean several different jobs: resynchronising the remote after a coin-cell battery change, replacing a weak key battery, checking the car battery, diagnosing the receiver, confirming that the transponder is recognised by the immobilizer, or programming a replacement key with dealer-level equipment. Those are not the same repair. Mixing them up wastes time and can leave the owner stranded.

This guide is written like a technician would explain it at the counter: start with the simple checks, separate remote locking from engine authorisation, avoid risky shortcuts, and know when a Citroen dealer, auto locksmith or diagnostic specialist is needed.

First, identify the exact symptom

Before any Citroen C3 key reset, decide which part of the key system is failing. A remote key normally has two jobs. One part operates central locking by radio signal. The other part, the transponder, allows the immobilizer to authorise engine start. A weak button battery can stop remote locking while the car still starts normally. A transponder or immobilizer issue can prevent starting even if the buttons still lock the doors.

That distinction saves a lot of confusion. If the car starts but the buttons do nothing, think remote battery, remote synchronisation, buttons, casing, receiver or vehicle battery voltage. If the buttons work but the engine will not start and a key warning appears, think immobilizer recognition, transponder, BSI communication, spare key comparison or diagnostic scan.

A sensible Citroen C3 key reset begins with observation. Write down what works, what does not, when it started, whether the key battery was changed, whether the car battery was disconnected, whether water entered the key, and whether a spare key behaves differently.

Remote battery replacement comes first

The first practical Citroen C3 key reset step is usually the coin-cell battery. Use the correct battery type for the key version, fit it with the correct polarity, and avoid touching the cell faces with greasy fingers. A cheap or old battery can test acceptable with no load and still fail inside the remote.

Inspect the key case while it is open. Look for broken button pads, a loose battery clip, corrosion, cracked solder joints, water marks or a blade that has been forced into the shell. If the battery contact does not grip the cell firmly, the remote may work on the bench and fail in daily use.

After replacing the battery, a Citroen C3 key reset may be needed to resynchronise the remote locking. The exact sequence can vary by generation and market, so the owner’s handbook for the specific C3 should be followed. If the handbook is missing, the official Citroen owner support and handbook resources are the safest starting point: Citroen UK official site.

Remote synchronisation versus key programming

Citroen C3 key reset is often confused with key programming. Remote synchronisation is a simple owner-level procedure on many vehicles after a remote battery change. It teaches the car and remote button signal to communicate again. Key programming is different: it adds or authorises a transponder key in the immobilizer system and normally requires security access, PIN data or approved diagnostic equipment.

If the original key used to work and only the remote buttons failed after a battery change, a synchronisation attempt is reasonable. If the key is new, copied, bought online or never started the car, it probably needs programming. If the transponder chip is missing from the key shell, no reset sequence will make the engine start.

A safe Citroen C3 key reset guide should never promise that every key can be fixed at home. Modern immobilizers exist to stop theft. If a replacement key needs coding, use a Citroen dealer or reputable auto locksmith who verifies ownership and uses the correct diagnostic process.

Check the spare key before blaming the car

If you have a spare key, it is the best diagnostic tool. A Citroen C3 key reset becomes much clearer when one key works and the other does not. If the spare key locks, unlocks and starts the car normally, the problem is likely inside the faulty key: battery, buttons, remote circuit, transponder chip or key shell damage.

If both keys fail in the same way, look at the vehicle. The car battery may be weak, the receiver may not be seeing the remote signal, the BSI may have stored faults, or there may be a wiring issue. A low vehicle battery can cause strange central locking and immobilizer behaviour, especially after the car has been parked for a long time.

Do not keep pressing buttons for minutes hoping the car will wake up. For a Citroen C3 key reset, calm repeatable testing beats panic. Test one key, note the result, wait, then test the spare in the same conditions.

The car battery can imitate key failure

A weak 12V battery can make owners think they need a Citroen C3 key reset when the key is not the real problem. Modern Citroen electrical systems depend on stable voltage. If the battery is weak, modules may wake slowly, central locking may behave oddly, the dashboard may show warnings, and the immobilizer may not communicate normally.

Check the battery age, resting voltage, terminal tightness and whether the car has been sitting unused. If the car cranks slowly or interior lights dim heavily, fix the vehicle battery before blaming the key. Jump-starting or charging can temporarily hide the problem, so a proper battery test is better.

If issues began after a flat battery or battery replacement, let the car complete normal wake-up and sleep cycles. Avoid disconnecting and reconnecting the battery repeatedly without a reason. A Citroen C3 key reset should not become random electrical experimentation.

Immobilizer warnings need diagnosis

When the engine will not start and the dashboard suggests a key or immobilizer problem, Citroen C3 key reset becomes a diagnostic job. The transponder inside the key must be recognised by the car. If the chip is damaged, missing, not programmed or not read by the antenna, the engine may be blocked.

A professional scan tool can often show whether the key is recognised, whether the immobilizer is authorised, and whether the BSI or engine ECU has stored faults. That information is far better than guessing. On some failures, the key is fine and the antenna or vehicle electronics are the issue.

For security reasons, do not trust anyone offering anonymous immobilizer bypass instructions. A legitimate Citroen C3 key reset or key programming job should involve proof of ownership and proper equipment. Vehicle theft prevention exists for a reason; agencies such as NHTSA vehicle theft prevention explain why anti-theft systems matter.

Water damage and worn key cases

Many key failures are physical. A Citroen C3 key reset cannot repair a remote that has been through the washing machine, dropped repeatedly or held together with tape. Water can corrode the board, button contacts and battery clip. A cracked case can let the transponder chip fall out during a shell swap.

When rebuilding a key shell, move every component carefully. Some keys have a small separate transponder chip that is easy to miss. If that chip is left in the old case, the remote buttons may work but the car will not start. This is one of the most common owner-created faults after buying a cheap replacement shell.

If the key was wet, remove the battery, dry the case and board gently, and do not apply heat that can deform plastic or damage solder. If corrosion is visible, an auto locksmith may be able to repair or clone the remote, but severe damage usually means replacement.

What a workshop will normally test

A good technician does not begin with a Citroen C3 key reset ritual. They test. They check key battery voltage, remote RF output, button operation, transponder presence, spare key behaviour, vehicle battery voltage, BSI fault codes, immobilizer status and receiver function. That is how you avoid replacing expensive parts blindly.

They may also ask for the vehicle identification number, proof of ownership, key count and whether any previous programming has been done. If all keys are lost, the job is different from resynchronising a working key. It may require security codes, dealer access or specialist locksmith equipment.

Internal guides for related diagnostics

If the key problem is part of a wider electrical or warning-light issue, compare the diagnostic approach with Opel Service StabiliTrak warning, which explains why warning messages need system-level diagnosis. If service resets and dashboard procedures are your concern, Jeep Renegade service reset and Volkswagen Golf 5 service reset show how owner procedures differ from fault repair.

The same logic applies here: a Citroen C3 key reset is useful only when the key actually needs resynchronising. If the car has voltage, BSI, immobilizer or receiver faults, the right answer is diagnosis.

A safe owner checklist

Use this Citroen C3 key reset checklist before paying for parts.

1. Confirm whether the problem is remote locking, engine start, or both.
2. Try the spare key in the same conditions.
3. Replace the remote battery with the correct fresh cell and polarity.
4. Inspect the key case, buttons, battery contacts and signs of water damage.
5. Check the car battery voltage and terminal condition.
6. Follow the model-specific handbook synchronisation procedure if appropriate.
7. Stop if the immobilizer warning remains or the car will not start.
8. Use a dealer or qualified auto locksmith for programming and security work.

This order keeps Citroen C3 key reset work safe. It also prevents a simple button battery problem from turning into a broken key shell, missing transponder or unnecessary immobilizer panic.

What to prepare before calling a locksmith or dealer

If the simple checks fail, prepare the information a professional will ask for. Have the registration document, proof of identity, VIN, model year, number of keys, symptoms, battery history and any recent work ready. Say clearly whether the car starts, whether the remote locks the doors, whether a spare key exists and whether the key shell has been opened or replaced.

A Citroen C3 key reset visit is faster when the technician knows whether they are dealing with remote synchronisation, key repair, transponder programming, BSI diagnosis or all-keys-lost recovery. Good information also protects you from buying the wrong blank key or paying for programming when the real fault is a weak vehicle battery.

Ask whether the new key will be cut, programmed and tested on the vehicle before payment. A proper job should confirm remote locking, manual door locking, engine start and dashboard warning status before the car leaves.

Mistakes to avoid

The biggest Citroen C3 key reset mistake is assuming every online procedure applies to every C3. The C3 has changed across generations and markets. Key style, remote type, immobilizer hardware and handbook procedure can differ. Use the exact model year and key type.

Another mistake is buying a used key and expecting it to work immediately. Remote boards, transponders and immobilizer coding are not universal. A blade that turns the lock is not the same as a transponder that starts the engine.

Finally, do not repeatedly disconnect the car battery, press random button combinations or try bypass advice from strangers. A Citroen C3 key reset should reduce uncertainty, not create more electrical faults.

FAQ

Can I do a Citroen C3 key reset myself?

Citroen C3 key reset may be owner-safe when the issue is remote synchronisation after a battery change. If the immobilizer blocks starting or a new key needs coding, use a dealer or qualified auto locksmith.

Why does the remote not work but the car starts?

The remote-locking side and transponder side are different. A weak coin-cell battery or lost synchronisation can stop buttons while the immobilizer still recognises the key.

Why do the buttons work but the engine will not start?

That points away from a simple remote battery issue. Citroen C3 key reset may not help if the transponder is missing, damaged or not recognised by the immobilizer.

Can a weak car battery cause key problems?

Yes. Low 12V voltage can create central locking, BSI and immobilizer symptoms. Test the vehicle battery before assuming the key is faulty.

Can I program a used Citroen C3 key?

Sometimes parts can be reused, but it depends on key type, transponder and vehicle security. A Citroen C3 key reset is not the same as programming a used key. Ask a professional before buying one.

What is the safest first step?

Try the spare key, replace the remote battery correctly and check the car battery. If the car still will not start, stop and get diagnostic help.

Final verdict

Citroen C3 key reset should be handled methodically. Start by separating remote locking from immobilizer start authorisation. Then check the key battery, spare key, case condition, car battery and handbook synchronisation steps. Most simple remote issues can be narrowed down quickly when you test in the right order.

If the C3 will not start, the key warning stays on, all keys fail, or a replacement key needs programming, the job belongs with a Citroen dealer or qualified auto locksmith. Done properly, Citroen C3 key reset is not guesswork; it is a clean diagnostic path from battery and buttons to transponder and immobilizer.

VW Passat 2017 remote battery replacement: step-by-step key fob guide

VW Passat 2017 remote battery replacement is a simple job, but it is worth doing carefully because the key fob is also part of the car’s security and convenience system. In most 2017 Passat remote keys the coin cell is a CR2032, but the safest habit is to open the remote, read the number on the old battery, and install the same type in a fresh, quality brand.

This guide is written for owners, buyers and technicians dealing with VW Passat 2017 remote battery replacement in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

This guide explains VW Passat 2017 remote battery replacement as a practical owner task: symptoms first, correct battery second, safe opening technique third, then testing and troubleshooting if the remote still does not work.

VW Passat 2017 remote battery replacement symptoms

The usual reason for VW Passat 2017 remote battery replacement is reduced remote range. The car may unlock only when you stand close to it, the buttons may need repeated presses, or the instrument cluster may show a key battery warning. On keyless-entry cars, you may also see “key not detected” style behavior, especially when the remote is inside a pocket or bag.

Do not assume every key problem is a dead battery. A cracked key case, worn button pad, water damage, broken solder joint, lost programming, weak car battery, door module fault or radio interference can imitate a low coin cell. Replacing the battery is still the best first step because it is cheap, fast and reversible.

Battery type and tools

A VW Passat 2017 remote battery replacement usually requires one CR2032 3V lithium coin battery, a clean cloth and a small plastic pry tool. Some owners use a small flat screwdriver, but metal tools can mark the plastic or slip into the circuit board. Work on a table, not outside next to a drain or gravel driveway.

Use a fresh battery from sealed packaging. Avoid loose coin cells from a drawer because they may be old, partially discharged or contaminated. Touch the new battery by the edges when possible. Oil from fingers is rarely catastrophic, but clean handling is a good habit.

For vehicle model background, Volkswagen’s own owner resources are the best place to confirm market-specific details, and the public Volkswagen owner manual page is the right starting point. For coin-cell safety context, the Poison Control button battery safety resource is worth reading if children are in the home.

Step-by-step procedure

For VW Passat 2017 remote battery replacement, begin by pressing the release button and removing the emergency metal key blade. Look at the seam in the remote body. The battery cover is normally released by gently prying at the slot or seam exposed after the metal key is removed. Use steady pressure rather than twisting violently.

Once the cover releases, note the battery orientation before removing it. Most coin-cell holders show the positive side, often marked with a plus sign. Lift the old battery out, slide the new battery in with the same polarity and press the cover back until it visits. Reinsert the metal key blade and test lock, unlock, boot release and panic button if fitted.

Testing after replacement

After VW Passat 2017 remote battery replacement, stand near the car and test lock and unlock. Then move several meters away and test again. If the range improves, the job is done. If the remote works only beside the door, the battery may be weak, the case may not be closed correctly, or the remote may have another issue.

For keyless start, sit in the car and check whether the vehicle detects the key normally. If it does not, use the emergency start position described in the owner’s manual. Many Volkswagen models allow the key to be held near a marked area or steering-column zone so the immobilizer can read it even with a weak remote battery.

If the remote still does not work

A failed VW Passat 2017 remote battery replacement usually comes down to five issues: wrong battery type, upside-down battery, dirty contacts, cracked remote case or synchronization. Remove the cover again and check polarity. The positive side of the coin cell must match the holder markings. Inspect the small metal contacts and make sure they are not flattened or corroded.

If you have a spare key, test it. If the spare works normally, the car is probably fine and the first remote needs attention. If both remotes fail, consider car battery voltage, central locking faults, antenna issues or a vehicle-side problem. A diagnostic scan may help when central locking or keyless access modules are involved.

Related Xmotoparts guides that help with electronic diagnosis include Toyota Yaris Hybrid remote key, Citroen C5 X7 key programming, and OBD2 protocol list for owners moving from key symptoms to scan-tool checks.

Do you need to reprogram the key?

Most VW Passat 2017 remote battery replacement jobs do not require full key programming. Replacing the coin cell should not erase the immobilizer chip. The immobilizer transponder is not powered by the coin-cell battery in the same way the remote buttons are. That is why a dead remote battery can still allow emergency starting when the car reads the transponder at the correct position.

Sometimes the remote lock/unlock function may need synchronization after the battery has been flat or removed for a while. Procedures vary by market and key type, so check the owner’s manual. Common methods involve using the mechanical key in the door lock and pressing remote buttons in a timed sequence, but do not force a method from another VW model if your manual says otherwise.

Coin battery safety

A VW Passat 2017 remote battery replacement uses a small lithium coin cell that must be kept away from children and pets. These batteries can be dangerous if swallowed. Do the job on a clear surface, account for the old battery immediately, and dispose of it according to local battery recycling rules.

Do not leave the old cell in the cup holder, glovebox or kitchen counter. Tape the used battery or place it back in packaging until recycling if needed. If ingestion is suspected, treat it as urgent and follow poison-control or emergency medical advice. A key fob battery is small, but the safety issue is serious.

Battery life and prevention

A VW Passat 2017 remote battery replacement may be needed every one to three years depending on remote use, climate, keyless-entry behavior and battery quality. A key kept near the car can sometimes communicate more often than expected on some systems, so avoid storing keys immediately beside the vehicle overnight.

Heat also shortens battery life. A remote left in direct sun, near a heater or inside a hot car may age faster. Keep a spare CR2032 at home in sealed packaging, but do not store loose coin cells where they can short against metal objects.

Common mistakes

The most common VW Passat 2017 remote battery replacement mistake is forcing the shell open in the wrong place. The second is installing the battery upside down. The third is using an old battery because it was available. The fourth is damaging the small contacts while prying. The fifth is assuming the key needs programming when the cover is simply not clipped shut.

Another mistake is ignoring the spare key. The spare key is a diagnostic tool. If the spare works perfectly, the car is receiving remote signals and the problem is in the first key. If neither key works, the problem may be vehicle-side.

Keyless access versus standard remote

VW Passat 2017 remote battery replacement can feel different depending on whether the car has a standard remote key or keyless access with push-button start. A standard remote mainly uses the coin cell for lock, unlock and boot release. The metal blade and immobilizer transponder still provide backup access and start recognition. A keyless system depends more heavily on the remote battery for daily convenience because the vehicle has to detect the fob inside or near the car.

On a keyless car, a weak battery may show up as intermittent starting trouble before the lock buttons fully fail. The owner may need to hold the remote close to a designated emergency reader area to start the vehicle. That does not mean VW Passat 2017 remote battery replacement failed. It often means the vehicle is using the backup recognition path until the fresh battery and remote communication are confirmed.

If the car has keyless entry, do not store the key immediately beside the vehicle overnight. Some owners use a signal-blocking pouch for theft prevention, but the basic battery-life point is simpler: the key should not be kept where the vehicle and fob constantly wake each other. After VW Passat 2017 remote battery replacement, normal range should return, but storage habits still matter.

Detailed troubleshooting after the swap

If VW Passat 2017 remote battery replacement does not restore function, slow down and test in order. First, verify the new battery with a meter if available, or try another sealed battery. Second, confirm polarity. Third, inspect the battery contacts for bending, dirt or corrosion. Fourth, close the case firmly because some remotes do not hold the cell tightly if the cover is not seated.

Next, test the spare key at the same location. Radio interference can happen near certain buildings, chargers, security systems or parking areas. If both keys act strangely only in one place, move the car or test elsewhere before assuming a key fault. A good diagnosis compares key one, key two and location.

If one remote works and the other does not, open the faulty remote again and look for physical signs. A white crust, sticky residue, broken button membrane or loose circuit board can explain failure. If the remote has been dropped repeatedly, solder joints may crack. In that case, VW Passat 2017 remote battery replacement was only the first test, not the final repair.

Choosing a replacement battery

A VW Passat 2017 remote battery replacement should use the correct chemistry and size, not merely a battery that fits loosely. CR2032 means a 20 mm diameter, 3.2 mm thick lithium coin cell with 3V nominal voltage. Similar-looking cells such as CR2025 are thinner and may not press firmly against the contacts. That can create intermittent failure even though the remote appears assembled correctly.

Buy from a normal retailer with good stock turnover. Counterfeit or aged coin cells are not rare online. Check the expiry date, keep the packaging until the key is tested, and avoid touching both faces at once with oily fingers. During VW Passat 2017 remote battery replacement, small details matter because the remote uses very low power and depends on clean contact pressure.

Do not mix old and new batteries in storage. If you keep a spare CR2032 in the glovebox, leave it in original packaging. A loose coin cell can short against coins, keys or tools. Better still, keep one at home and replace proactively when the remote range begins to fall. A planned battery swap is easier than doing it at night in a parking lot.

Owner workflow checklist

Before VW Passat 2017 remote battery replacement, unlock the car, work somewhere bright and keep the spare key nearby. During the job, lay the metal blade, cover and old battery in a line so nothing disappears. After the job, test every button, test the spare, and check that the emergency blade visits back fully.

After VW Passat 2017 remote battery replacement, wait a few minutes and test again. Some owners test only once and assume everything is done. A second test confirms that the battery is seated and the case has not flexed open. If the key lives on a heavy key ring, remove unnecessary weight because constant pulling can wear the case and blade hinge over time.

Finally, write the replacement month on a small note in the service folder. Key batteries are easy to forget because they fail slowly. Recording VW Passat 2017 remote battery replacement helps you recognize whether a future failure is normal aging or an unusually short battery life that points to a remote or storage problem.

FAQ

What battery does a 2017 Passat key use?

Most use a CR2032 3V lithium coin cell, but confirm by reading the old battery before buying. A careful VW Passat 2017 remote battery replacement always matches the cell number already fitted.

Will changing the battery erase the key?

Usually no. The immobilizer transponder should not be erased by a normal VW Passat 2017 remote battery replacement. Remote synchronization may occasionally be needed.

Why does the car say key not detected after replacement?

Check polarity, battery freshness, case closure and spare key behavior. If the spare works, the first remote may have contact or circuit damage.

Can I use a cheaper CR2032?

You can, but a quality fresh battery is better. Cheap or old coin cells may create weak range and repeated failures.

Do I need a dealer?

Not for a normal battery swap. You may need a dealer or locksmith if the key is physically damaged, desynchronized beyond normal owner procedure, or no longer recognized by the car.

Final verdict

VW Passat 2017 remote battery replacement is one of the easiest owner maintenance jobs when done calmly. Remove the emergency key, open the cover gently, match the old coin cell, respect polarity, close the case fully and test both short-range and normal-range operation.

The best VW Passat 2017 remote battery replacement result is boring: the remote works, the key is undamaged, the old battery is recycled safely and the owner understands what to check if the problem returns. That is exactly what a good small repair should achieve.

Free ELM327 PC software: how to choose safe OBD-II programs for Windows diagnostics

Free ELM327 PC software is a search made by drivers who already have a cheap OBD-II adapter and want to read fault codes on a laptop without paying for professional scan-tool software. The useful answer is not a random download list. The useful answer is knowing which programs are safe, what ELM327 can really do, and when a free tool is enough.

This guide is written for owners, buyers and technicians dealing with Free ELM327 PC software in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

This guide explains Free ELM327 PC software like a workshop-minded user would: adapter quality first, safe download sources second, software compatibility third, and only then features. A poor clone adapter or suspicious installer can waste more time than a paid app ever would.

What owners need to know first

Most people searching Free ELM327 PC software want one of four things: read a check engine light, clear a generic diagnostic trouble code, watch live sensor data, or confirm inspection readiness. A smaller group wants manufacturer-specific access, coding, service procedures or module scans, which is where a basic ELM327 setup may not be enough.

The related topic set includes OBD2 diagnostic software, ELM327 USB, ELM327 Bluetooth, ELM327 WiFi, COM port driver, FTDI driver, CH340 driver, OBD-II PIDs, CAN bus, ISO 9141, ISO 14230, SAE J1850, ISO 15765, DTC codes, freeze frame data, oxygen sensor, fuel trim, coolant temperature, mass airflow sensor, readiness monitors and MIL reset.

What ELM327 actually is

Free ELM327 PC software depends on a small interpreter chip or compatible clone that translates OBD commands between the vehicle and a computer. The adapter may connect by USB, Bluetooth or Wi-Fi. The software sends commands, receives responses and turns them into fault codes, live data values, readiness status and sometimes graphs.

ELM327 is not the same thing as a professional dealer tool. It is strongest for generic OBD-II emissions diagnostics. That includes reading and clearing many powertrain codes, viewing common live data and checking whether monitors are ready. Manufacturer-specific modules, ABS, airbag, steering, body control, coding and programming may need brand-specific software, a better adapter or a J2534 interface.

Safe software options worth knowing

A responsible Free ELM327 PC software shortlist should start with official project sites, not mirror downloads. FORScan is a respected Windows option for Ford, Mazda, Lincoln and Mercury vehicles, but the official page warns that many ELM327-branded adapters are poor quality and that recommended adapters work better. Freediag is an experimental open-source diagnostic suite with Windows and Linux support, but it is more technical and command-line oriented.

OBD Auto Doctor is a polished consumer diagnostic app that supports ELM327 dongles and runs on Windows, macOS and mobile platforms; it has free and paid tiers depending on features. The key lesson is that “free” can mean open-source, free trial, limited free edition or free basic functions. Always check the current license on the official site before assuming a feature is free forever.

For source-level reading, see the official FORScan home page and the Freediag project page. They are better references than anonymous download pages because they explain limits, compatibility and adapter requirements.

Adapter quality matters more than the download

The biggest frustration with Free ELM327 PC software is not the software. It is the adapter. Many cheap devices advertise ELM327 version numbers that are misleading. Some clones connect to basic generic OBD-II but fail with faster data, manufacturer-specific functions, MS-CAN, long messages or stable Bluetooth pairing.

If the program cannot connect, check the basics. On USB adapters, install the correct driver, identify the COM port in Device Manager and match the baud rate. On Bluetooth adapters, pair the device before opening the diagnostic program. On Wi-Fi adapters, connect the laptop to the adapter network and understand that internet access may drop while connected.

USB, Bluetooth or Wi-Fi?

For most laptop users, USB is the most stable choice. Bluetooth is convenient but can be unreliable with some Windows stacks. Wi-Fi can work well, but it often interrupts normal internet connectivity. A Free ELM327 PC software setup used for serious diagnosis should favor stable communication over convenience.

What free tools can usually do

A good Free ELM327 PC software setup can read generic powertrain DTCs, show freeze frame data, clear codes, display live data such as RPM, coolant temperature, intake air temperature, fuel trims, oxygen sensor voltage, throttle position, vehicle speed, calculated load and mass airflow. It can also check readiness monitors before emissions inspection.

That is already valuable. A P0171 lean code, P0300 misfire, P0420 catalyst efficiency code or coolant temperature reading can guide diagnosis. But the tool does not replace testing. A code tells you what the ECU sees, not which part to buy. A lean code might be a vacuum leak, fuel delivery issue, MAF problem, exhaust leak or sensor fault.

For broader diagnostic context on this site, read OBD2 protocol list, the explanation of 07E8 code / 07E8 engine code, and the warning-light style guide on Opel Service StabiliTrak warning.

What free ELM327 tools usually cannot do

Free ELM327 PC software often cannot perform dealer-level functions. Do not assume it can program keys, code injectors, reset every service function, run ABS bleeding, calibrate steering angle, perform DPF regeneration, access airbag modules or reprogram ECUs. Some brand-specific software can do more, but only on supported vehicles and with the right adapter.

This distinction protects the car. Sending unsupported commands, using poor adapters or trying configuration functions without a battery support unit can create problems. If the job involves programming, coding, immobilizer functions or safety systems, professional equipment and procedures are safer.

How to install safely on Windows

When setting up Free ELM327 PC software, download from the official website, scan the installer with your security tools, avoid bundled driver packs from random pages and create a restore point if you are experimenting. For USB adapters, identify the chip family before installing drivers. Common adapters use FTDI, CH340 or CP210x style USB-serial chips, but clones vary.

Plug the adapter into the car, turn ignition on, connect the laptop, select the COM port, choose the correct adapter type and run a connection test. If the program supports automatic protocol detection, let it try. If it fails, do not immediately clear codes or change settings. Fix communication first.

Reading codes without guessing parts

The value of Free ELM327 PC software is highest when the user reads data carefully. Record the code, freeze frame, mileage, engine temperature, fuel trims and conditions when the fault occurred. Clear the code only after saving information. If it returns, compare the new freeze frame to the first one.

Do not buy parts because a code mentions them. Oxygen sensor codes can be caused by exhaust leaks or fueling problems. Misfire codes can come from ignition, compression, fuel, vacuum leaks or wiring. Catalyst codes can be real catalyst faults, but they can also be influenced by exhaust leaks or long-term misfire damage.

Best use cases for a free PC setup

A Free ELM327 PC software setup is excellent for DIY checks before visiting a workshop. It can show whether the check engine light is emissions-related, whether the engine reaches operating temperature, whether fuel trims are extreme, whether readiness monitors are complete, and whether a repair caused a code to return.

It is also useful for learning. Watching coolant temperature, fuel trims and oxygen sensor behavior teaches how the ECU thinks. The danger is overconfidence. Data is evidence, not a verdict. A laptop and adapter can guide diagnosis, but mechanical testing still matters.

A careful diagnostic workflow

Free ELM327 PC software should be used with a repeatable workflow. First, connect with the ignition on and confirm battery voltage is healthy. Second, read all available generic codes without clearing anything. Third, save or screenshot the codes, freeze frame and readiness status. Fourth, read live data while the engine is cold, warming up and fully warm. Fifth, compare the data to the symptom instead of jumping straight to replacement parts.

A good example is a lean code. Free ELM327 PC software may show high positive fuel trims, but the trim alone does not tell you whether the cause is a vacuum leak, intake boot crack, weak fuel pump, dirty MAF, exhaust leak or sensor problem. The laptop gives direction; smoke testing, fuel pressure testing and visual inspection provide proof.

Another example is a thermostat fault. Free ELM327 PC software can show coolant temperature rising too slowly or never reaching normal range. That is more useful than simply reading a code, because it lets the user see whether the engine actually warms up during a drive. Still, the repair decision should consider the gauge, heater output, cooling fan behavior and physical thermostat condition.

Misfire diagnosis also benefits from patience. Free ELM327 PC software may show P0301, P0302 or P0300, but the cause could be ignition coil, plug, injector, compression, wiring, fuel quality or mechanical timing. Swapping coils between cylinders, inspecting plugs and checking compression are still part of real diagnosis. Software shortens the path; it does not eliminate the path.

Feature comparison for ordinary users

The best Free ELM327 PC software choice depends on the vehicle and the user’s confidence level. A beginner needs clear DTC descriptions, readiness status and simple live data. A hobby mechanic needs graphing, logging, custom PIDs and stable reconnect behavior. A brand specialist may need module access, service functions and adapter support that goes beyond a basic clone.

Security and download hygiene

Free ELM327 PC software is a topic that attracts questionable download pages. Avoid installers that promise every brand, every function and every adapter in one cracked package. Do not disable antivirus to install diagnostic software. Do not install driver bundles that demand browser extensions, registry cleaners or unrelated utilities. A diagnostic laptop should remain boring and clean.

Use official sites, GitHub or project-hosted pages when possible. Check whether the software is still maintained, whether Windows 10 or Windows 11 is supported, and whether the installer is signed. If a tool is old but useful, run it on a spare laptop or a controlled environment. The diagnostic setup should save money on diagnosis, not create malware cleanup work.

Also be cautious with “version” claims from adapters. Some devices report impossible or misleading ELM327 versions. That does not automatically mean they are useless, but it does mean you should test slowly. A genuine or high-quality compatible adapter is often worth more than trying five cheap clones. Stable communication is the foundation of every Free ELM327 PC software setup.

When to stop and call a professional

Free ELM327 PC software is helpful, but it should not encourage risky work. Stop when the job involves airbag systems, brake bleeding through ABS modules, immobilizer programming, ECU flashing, hybrid high-voltage systems, diesel forced regeneration in unsafe conditions or repeated fault clearing before inspection. These jobs can create safety, legal or financial consequences.

Stop also when the data contradicts itself. If fuel trims, sensor voltages and symptoms do not make sense, the next step may be oscilloscope testing, smoke testing, pressure testing or manufacturer service information. A good workshop will appreciate a clear record of codes and data. Free ELM327 PC software is not wasted even when the final repair needs professional tools.

Finally, remember that clearing a warning light is not a repair. A light that stays off because the monitor has not run yet may return later. A car that barely passes readiness may still have a real fault. Use the laptop scan to understand the vehicle, then confirm the repair with a proper drive cycle and a second scan.

FAQ

What is the best free program for every car?

There is no single best Free ELM327 PC software for every car. Generic OBD-II tools work across many vehicles, while brand-specific tools like FORScan are powerful only for supported makes.

Can free ELM327 software clear the check engine light?

Usually yes for generic powertrain codes, but clearing without diagnosis is risky. A Free ELM327 PC software tool can erase evidence you may need later.

Why will my adapter not connect?

Common causes include wrong COM port, missing driver, low battery voltage, bad clone adapter, unsupported protocol or Bluetooth pairing issues. Test the connection before blaming the car.

Can I diagnose ABS and airbags?

Often no with a generic ELM327 setup. Some brand-specific programs can access more modules, but the adapter and vehicle must be supported.

Is free software safe?

It can be safe if downloaded from official project sites and used for reading data. Avoid suspicious installers, cracked programs and unknown driver bundles.

Final verdict

Free ELM327 PC software can be genuinely useful if expectations are realistic. Use official sources, choose a stable adapter, learn the COM port basics, save data before clearing codes and remember that generic OBD-II is mainly emissions and powertrain information.

The best Free ELM327 PC software setup is not the one with the longest feature list. It is the one that connects reliably, shows accurate data, respects the limits of the adapter and helps you make better diagnostic decisions without turning your laptop into a risk for the vehicle.

Car DAB adapter: the practical buyer and installation guide for better digital radio

This guide is written for real owners who need a clear decision path. It focuses on symptoms, checks, costs, reliability risks and practical next steps, so the repair or upgrade can be judged before parts are ordered.

This guide is written for owners who want the installation to work on real roads, not only while parked outside the house. It explains how DAB radio differs from FM, why a windscreen antenna can be brilliant or terrible depending on grounding, how to choose between FM transmission and line-in audio, and when a full head unit upgrade is the cleaner answer.

What owners need to know first

The practical topic around Car DAB adapter includes DAB+ adapter, DAB adapter auto, antenna DAB, car digital radio adapter, DAB car radio antenna, DAB+ receiver, FM transmitter DAB, AUX DAB adapter, USB DAB radio receiver, active DAB antenna, windscreen DAB aerial and poor DAB reception in car. That cluster tells us the buyer is not only asking “which device?” but “will it actually receive stations in my vehicle?”

Authoritative industry material also points in that direction. WorldDAB describes automotive work around receiver performance, antenna sensitivity and aftermarket devices, while its technical resources point readers to ETSI standards for the DAB family. In plain terms, a Car DAB adapter sits between a broadcast standard, a moving vehicle, a small antenna and a stereo system that may have been designed before DAB+ became common.

What a digital radio adapter actually does

A Car DAB adapter is a small receiver that tunes terrestrial digital radio broadcasts and sends audio to the car stereo. It does not magically turn a weak signal into a strong one. It receives a DAB or DAB+ multiplex, decodes the station, and then outputs the sound through AUX, Bluetooth, USB audio on some systems, or an FM transmitter frequency that your existing radio can tune.

DAB works differently from old analogue FM. Instead of one station per frequency, digital radio can place multiple services inside a multiplex or ensemble. That is why a scan may find a list of station names rather than forcing you to tune manually. It is also why reception can feel sudden: FM may fade into hiss, while a weak digital signal may sound fine for a moment and then disappear, mute or produce the familiar burbling artifact drivers complain about.

A Car DAB adapter therefore has four jobs: it must receive the signal, decode it correctly, keep its power stable, and feed clean audio into the original stereo. If any one of those jobs is weak, the product feels bad even if the core tuner is acceptable.

DAB, DAB+ and why compatibility matters

When shopping for a Car DAB adapter, look for DAB+ support, not only old DAB. DAB+ uses a newer audio codec than original DAB, and in many countries it is the format listeners actually need. A device that receives only legacy DAB can be a frustrating bargain because it may miss services that newer receivers handle normally.

WorldDAB’s country information shows that regular DAB services exist across many markets, and its automotive section focuses specifically on the in-car experience. That matters because cars are harsh radio environments: heated windscreens, metalized glass, dash cameras, USB chargers, LED lighting, poorly grounded accessories and long cable runs can all affect reception. A home radio placed near a window is not the same test as a car driving through buildings, hills and motorway cuttings.

For technical background, the WorldDAB automotive resources are useful because they discuss receiver performance, antenna sensitivity and aftermarket device work. For standards references, WorldDAB also points to DAB technical specifications and ETSI documents, which is where the engineering foundation sits.

Choosing the right adapter type

The best Car DAB adapter for one vehicle is not automatically the best for another. A modern car with AUX input and a clean 12V socket can use a simple dashboard receiver. A vehicle with no AUX may need FM transmission. A car with an aftermarket Android head unit might accept a USB DAB module. A classic car may need a discreet receiver that preserves the original dashboard.

Why the antenna matters more than the display

A Car DAB adapter with a poor antenna installation will disappoint. Most complaints about digital radio adapters are really antenna complaints: short station list, dropouts under trees, silence on rural roads, reception that changes when the heater is on, or audio that improves when the power cable is moved away from the antenna lead.

Windscreen antennas are common because they are easy to fit. They usually need a vertical element placed near the A-pillar and a ground strip connected to bare metal or a proper grounding point. If the ground tab touches paint, trim, adhesive film or nothing at all, the antenna may still scan stations while parked but fail during normal driving. Heated front glass and metallic tint can make the same type of antenna behave differently from car to car.

A roof antenna can be better because it has height and a cleaner ground plane, but fitting one means removing trim, routing coaxial cable and sometimes replacing a factory base. The decision is practical: if you drive mostly in strong urban DAB coverage, a neat internal antenna may be enough. If you drive through fringe areas, hills or long rural stretches, antenna quality becomes the main investment.

Active antenna, passive antenna and power feed

Some antenna kits include an amplifier. An amplified antenna can help when used correctly, but it can also amplify noise. A Car DAB adapter with antenna power enabled must match the antenna design; feeding voltage into the wrong aerial is not a fix. Check whether the adapter supplies phantom power, whether the antenna expects 5V or 12V, and whether the SMB connector is firmly seated.

Where to place a windscreen antenna

Place the aerial high on the windscreen, away from thick wiring, dash cameras, GPS antennas, phone chargers and metalized sun strips. Clean the glass, route the cable gently and keep the coax away from power wiring where possible. A Car DAB adapter can only decode what the aerial delivers, so careful placement is not cosmetic; it is the heart of the installation.

Audio routing: AUX, FM transmitter, Bluetooth or USB

The second biggest decision after the antenna is how the Car DAB adapter sends sound to the car stereo. AUX is usually the cleanest simple option because it avoids rebroadcasting audio over a local FM frequency. FM transmission is convenient and universal, but it can pick up interference if a nearby broadcaster occupies the same frequency or if you travel between regions with different FM congestion.

Bluetooth is convenient for cabins where cables look untidy, but it can introduce pairing delays, compression and phone conflicts. USB can be excellent on systems designed for external digital radio modules, yet it is not universal: many factory USB ports read storage devices only and will not accept a DAB receiver. Read compatibility carefully before assuming that a USB socket means USB audio.

Installation sequence that avoids most problems

Before sticking anything permanently, test the Car DAB adapter in the car with temporary cable routing. Power the device, place the antenna roughly where it will live, scan for stations, then drive a short route that includes the roads you actually use. If the station list is short or the audio drops in predictable places, adjust the antenna before committing adhesive pads and trim clips.

Next, choose a power source that does not create electrical noise. Cheap 12V USB adapters can inject whining, clicking or broad interference. If the adapter behaves better on a different power supply, the tuner may not be the problem. Keep power leads and antenna coax separated where practical, especially behind the dashboard where everything is tempted to become one tangled bundle.

Finally, set the audio path carefully. With AUX, start with the adapter volume around the middle and raise the stereo volume normally. With FM transmitter mode, choose a quiet frequency and store it as a preset. With Bluetooth, test whether the adapter reconnects after ignition cycling. A Car DAB adapter should feel like part of the car, not like a gadget that needs a ritual every morning.

Reception diagnosis: symptoms and fixes

When a Car DAB adapter scans stations but will not hold them, separate coverage from installation. If reception is strong in one city and weak in another, coverage and terrain may be the limit. If reception changes when you touch the antenna cable, switch on a charger or move the camera cable, installation is the suspect. The diagnostic method matters because replacing the receiver will not fix a bad ground or noisy power supply.

Xmotoparts already has a focused reception article that pairs well with this subject: see the guide on why car DAB radio is not working when the issue feels more like signal loss than product selection. If you are ready to buy the hardware, the site also lists a DAB car radio antenna receiver kit. For cars where wiring or stereo connections are the bigger worry, the Volkswagen stereo wiring color diagram gives useful context for head unit work.

When a full stereo replacement is better

A Car DAB adapter is attractive because it is reversible and affordable. Yet some cars deserve a full head unit replacement. If the original stereo has no AUX, no Bluetooth, a weak display, failing buttons and poor speaker output, an adapter may solve only one problem while leaving the cabin experience dated. A modern DAB+ head unit can integrate station lists, phone calls, USB music and steering wheel controls more cleanly when fitted correctly.

The counterargument is also valid. Many factory systems are integrated with parking sensors, vehicle settings, climate information or amplifier networks. In those cars, replacing the head unit can create more work than expected. The adapter lets the owner add digital radio while preserving OEM behavior, which is why adapters remain relevant even as new vehicles arrive with built-in DAB receivers.

What to check before buying

Before ordering a Car DAB adapter, confirm five details. First, your country and routes should have suitable DAB or DAB+ coverage. Second, the receiver should support DAB+. Third, the kit should include an antenna that suits your vehicle glass and installation skills. Fourth, the audio output should match your stereo. Fifth, the power arrangement should be tidy enough that you will not unplug it after a week.

Also check physical usability. Can you read the display in sunlight? Can you change stations without looking away for too long? Does the remote control make sense? Are the buttons usable with gloves in winter? Does the adapter remember stations after ignition off? The best DAB receiver is not necessarily the most feature-heavy; it is the one that becomes boringly dependable.

Common mistakes that make adapters look worse than they are

The first mistake is fitting the antenna wherever it looks neat. The second is using the cheapest USB power plug in the drawer. The third is judging reception from a single parked scan. The fourth is choosing FM transmitter output when AUX is available. The fifth is forgetting that digital radio availability changes by country, region and route.

The receiver is also sometimes blamed for problems caused by other accessories. Dash cameras, phone fast chargers, LED conversion bulbs and poorly shielded aftermarket electronics can all add noise. If reception worsens after another accessory is fitted, test with that accessory unplugged before replacing the radio adapter.

Professional installation versus DIY

DIY installation is realistic if you are comfortable removing light trim, routing thin cable and testing before final placement. A basic DAB kit can be installed carefully at home with patience. Professional installation is worth considering when you want a hidden receiver, a roof antenna, a hardwired power supply, or integration with an expensive factory infotainment system.

The professional advantage is not only neatness. A good installer understands grounding, cable routing, switched power, fuse taps, airbag-safe trim paths and the difference between a cosmetic install and a radio-frequency install. That experience matters most in vehicles with heated windscreens, complex dashboards or limited access to clean metal grounding points.

Car DAB adapter checklist for a first test drive

After installing a Car DAB adapter, do not stop at “it powers on.” Run a full scan, save several stations from different ensembles, test your usual commute, switch the rear screen heater on and off, plug in your phone charger, start the dash camera and drive past the places where reception is normally weak. If the audio stays stable through that routine, the setup is likely solid.

Make one change at a time if it fails. Move the antenna before replacing the receiver. Change the power supply before blaming coverage. Try AUX before accepting poor FM transmitter sound. Rescan after moving to a different region. This methodical approach is what turns a frustrating afternoon into a reliable installation.

FAQ

Is a DAB+ receiver better than a standard DAB receiver?

Yes, in most buying situations. A Car DAB adapter should support DAB+ because many current digital radio services use it. A legacy-only receiver can be limited even if it looks cheaper.

Can I use an adapter without changing my factory stereo?

Usually yes. A Car DAB adapter can feed audio through AUX, FM transmitter mode, Bluetooth or supported USB systems. The right choice depends on your original stereo inputs.

Why does the radio work in town but cut out on rural roads?

That pattern usually points to coverage, terrain or antenna performance. A stronger antenna installation may help, but no Car DAB adapter can create a broadcast where signal is genuinely absent.

Is a windscreen antenna good enough?

It can be. A well-fitted windscreen antenna with proper grounding can work well in strong coverage areas. A roof antenna is often better for fringe reception, long motorway routes and difficult vehicles.

Will FM transmitter mode reduce sound quality?

It can. FM mode is convenient, but AUX or a proper line-level connection normally gives cleaner sound. If your Car DAB adapter offers both, test AUX first.

Final verdict

Car DAB adapter buying should start with the vehicle, not the product photo. Check coverage, choose DAB+ support, treat the antenna as the main component, use the cleanest audio path your stereo allows and test the installation on real roads before making it permanent. Done properly, a Car DAB adapter can extend the life of an older stereo and bring digital radio into the cabin without a disruptive dashboard rebuild.

The most reliable installations are rarely mysterious. They use a suitable antenna, a quiet power supply, sensible cable routing, an audio path that matches the head unit and a driver who understands the limits of digital reception. If you approach it that way, a Car DAB adapter becomes a practical upgrade rather than another accessory stuck to the windscreen.

Toyota Yaris Hybrid remote key: replacement, battery, programming and smart-entry troubleshooting guide

Toyota Yaris Hybrid remote key is a search with several different meanings. Some owners need a replacement fob, some want to change the coin battery, some are trying to add a spare key, and others have a Yaris Hybrid that says the key is not detected. The right answer depends on whether the car has a conventional remote key, a smart key, push-button start, immobilizer pairing or a simple battery problem.

This guide explains Toyota Yaris Hybrid remote key from an owner and workshop perspective. It covers key battery replacement, emergency starting, remote lock failure, smart entry problems, lost keys, spare-key programming, immobilizer security, aftermarket fobs, dealer coding, locksmith options, warning messages and how to avoid turning a simple key issue into an expensive electronic problem.

Quick answer

The quick Toyota Yaris Hybrid remote key answer is this: start with the fob battery and spare key comparison, then check whether the problem is remote locking, smart entry detection or immobilizer starting. Battery replacement is owner-level work on many fobs. Adding or replacing a key usually requires the correct key type and secure programming through Toyota or a qualified automotive locksmith.

What owners need to know first

This guide is written for owners, buyers and technicians dealing with Toyota Yaris Hybrid remote key in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

Use official Toyota information first

A careful Toyota Yaris Hybrid remote key diagnosis starts with the correct owner manual for the exact model year. Toyota UK provides an official manual search at Toyota owner manuals. Toyota Motor Europe also provides official brand and market context at Toyota Europe. The manual matters because key type, emergency start procedure and warning wording can vary.

Do not assume every online key tutorial applies to your Yaris Hybrid. Toyota changed systems across years and markets, and a petrol Yaris, Yaris Cross and Yaris Hybrid can use different procedures or fob designs.

Identify the key type

The first Toyota Yaris Hybrid remote key step is identifying what you have. A basic remote key may have buttons and a mechanical blade. A smart key may allow keyless entry and push-button start. Some fobs include an emergency mechanical blade hidden inside the case. The car may still use a transponder immobilizer even if the remote-lock buttons fail.

Look at the start method, fob shape, FCC or CE markings, button layout, emergency blade and owner manual. The wrong fob can look similar and still fail to program.

Key battery replacement

Many Toyota Yaris Hybrid remote key problems are simply a weak coin-cell battery. Symptoms include reduced range, intermittent unlocking, low key battery messages or the need to hold the fob close to the start button. Replace the battery with the correct type and orientation, and avoid touching contacts with greasy fingers.

If the fob works normally after battery replacement, no programming is needed. Replacing the battery should not erase key registration. If the fob still fails, compare with a spare key before buying parts.

Emergency start method

A common Toyota Yaris Hybrid remote key situation is a car that does not detect the smart key even though the fob is present. Many Toyota smart-key systems allow emergency starting by holding the fob close to the start button or a specified reader area. The exact procedure should come from the owner manual.

If the emergency method works, the fob battery or detection range may be the issue. If it does not work with either key, the car-side system, 12-volt battery, brake switch, immobilizer or antenna network may need diagnosis.

The 12-volt battery trap

Hybrid owners sometimes blame Toyota Yaris Hybrid remote key faults when the real issue is the small 12-volt battery. A weak 12-volt battery can create strange smart-entry behavior, no-ready condition, warning messages and intermittent locking. The hybrid traction battery is not the same thing as the 12-volt battery that wakes the electronics.

Before replacing an expensive key, test the 12-volt battery under load. If the car has been parked for a long time or used only for short trips, low voltage becomes more likely.

Remote locking versus immobilizer starting

An important Toyota Yaris Hybrid remote key distinction is remote locking versus immobilizer authorization. The buttons may fail while the transponder still starts the car. Or the buttons may lock and unlock the doors while the car refuses to enter READY mode. Those are different fault paths.

Remote locking involves the fob transmitter and body electronics. Starting involves immobilizer registration, smart key authentication, brake-pedal input, power switch logic and vehicle-side antennas.

Adding a spare key

Adding a spare Toyota Yaris Hybrid remote key should be done before all keys are lost. When at least one working key exists, programming is usually simpler and cheaper. When no working key exists, immobilizer recovery can require more secure procedures, proof of ownership and dealer-level access.

Buy the correct key for the VIN, region and system. A cheap fob with a similar shell can be the wrong frequency, wrong transponder, locked to another car or impossible to register.

Dealer versus locksmith

For Toyota Yaris Hybrid remote key replacement, a Toyota dealer is often the safest route for exact VIN matching and official procedures. A qualified automotive locksmith may be faster or more convenient, especially for spare-key programming, but they need Toyota-capable equipment and the correct blank or smart key.

Ask what is included: key shell, blade cutting, transponder registration, smart-key registration, remote locking test, emergency blade test and warranty. A key that only locks the doors is not complete if it cannot start the car.

Aftermarket and online keys

Online listings make Toyota Yaris Hybrid remote key replacement look simple, but compatibility is the hard part. Frequency, board number, transponder type, smart-entry generation and regional coding can all matter. Some used smart keys cannot be reused without specialist unlocking, and some aftermarket units have poor range or unreliable buttons.

If buying online, confirm part number, frequency, blade profile, virgin or reusable status and programming support before paying. The cheapest key is not cheap if no one can code it.

Mechanical blade and door lock

The mechanical blade is an overlooked Toyota Yaris Hybrid remote key detail. Even smart-key cars usually include a physical emergency blade. It should unlock the driver door if the fob battery or 12-volt battery fails. If the blade is missing or never cut, emergency access becomes harder.

Test the emergency blade before you need it. Door locks that are never used can become stiff, so gentle lubrication and occasional testing may prevent trouble.

Warning messages

Common Toyota Yaris Hybrid remote key messages include key not detected, low key battery, key malfunction, smart entry malfunction or immobilizer-related warnings. The exact wording matters. A low key battery message is not the same as a smart-entry system fault.

Record the message, take a photo and note whether the car enters READY. If the message appears with other electrical warnings, check the 12-volt battery and scan the body-control and smart-key systems.

Interference and location problems

Some Toyota Yaris Hybrid remote key complaints happen only in certain places. Radio interference near transmitters, parking structures, charging equipment, mobile devices or other electronics can reduce smart-key range. A fob stored next to a phone or metal object may also behave poorly.

Test the car in a different location before replacing parts. If the problem disappears elsewhere, interference may be part of the story.

Water, impact and worn buttons

A damaged Toyota Yaris Hybrid remote key can fail after being dropped, washed, bent or stored in a damp pocket. Worn rubber buttons may stop pressing the microswitches. Cracked cases can let moisture reach the circuit board. A key shell repair may be enough if the electronics are healthy.

If the circuit board is corroded or the transponder is damaged, replacement and registration may be required. Do not glue a case shut before confirming the battery and board are correctly seated.

Security and proof of ownership

Because Toyota Yaris Hybrid remote key programming involves vehicle security, legitimate providers should ask for proof of ownership. That is normal. Be cautious of anyone offering key registration without VIN checks, identification or proper equipment.

Keep key codes, invoices and spare-key details in a safe place. Good records make future replacement easier and protect resale value.

Real-world owner scenarios

A commuter dealing with Toyota Yaris Hybrid remote key trouble usually wants speed and reliability. If the fob range becomes short, replace the battery before the key fails completely on a workday morning.

A family with one remaining Toyota Yaris Hybrid remote key should make a spare immediately. Waiting until the last key is lost usually turns a straightforward job into a more expensive immobilizer recovery.

A used-car buyer inspecting a Toyota Yaris Hybrid remote key should test every button, the emergency blade, smart entry on both front doors if equipped, boot release and READY mode. Missing keys should affect the price.

A driver seeing intermittent Toyota Yaris Hybrid remote key warnings should record when they happen. If the warning appears after the car sits for days, the 12-volt battery may be part of the issue.

A wet or dropped Toyota Yaris Hybrid remote key should be opened carefully, dried and inspected before more damage occurs. If corrosion is visible, assume the repair may not last.

A replacement Toyota Yaris Hybrid remote key bought online should not be cut or coded until the part number and frequency have been checked. Once modified, many sellers will not accept a return.

A workshop handling Toyota Yaris Hybrid remote key programming should test both remote locking and starting before handing the car back. A key that performs only one function is not fully finished.

An owner storing a spare Toyota Yaris Hybrid remote key should keep it away from moisture, heat and magnetic key rings that can damage the case or make it harder to find when urgently needed.

Diagnostic checklist before spending money

Before ordering a replacement fob, work through a simple checklist. Replace the coin cell with a known-good branded battery, clean the contacts gently, make sure the case closes properly, and test the fob away from other electronic devices. Then compare behavior with the spare key if one exists. A five-minute comparison can prevent a needless purchase.

Next, test the vehicle side. Does the interior light respond when the door opens? Does the car lock from the door switch? Does the mechanical blade unlock the driver door? Does the brake-light switch work when the pedal is pressed? Does the dashboard wake normally? These details show whether the issue is the key, the body electronics, the 12-volt battery or the start authorization process.

If a scan tool is available, read all relevant modules rather than only the engine ECU. Smart entry, immobilizer, body control and hybrid control systems may store different clues. A code showing low voltage, antenna communication or key registration status can change the repair path completely. Clearing codes too early removes evidence, so save screenshots or a printed report first.

Also think about timing. A fob that fails after rain, after being dropped, after a battery replacement or only in one parking location is telling a story. Water damage, a disturbed battery contact or radio interference are different problems. Good diagnosis listens to that story before parts are replaced.

Internal guides for related Toyota key faults

For a broader Toyota smart-entry fault, our Toyota RAV4 smart entry and start system malfunction guide explains how low voltage, antennas and authentication faults can overlap.

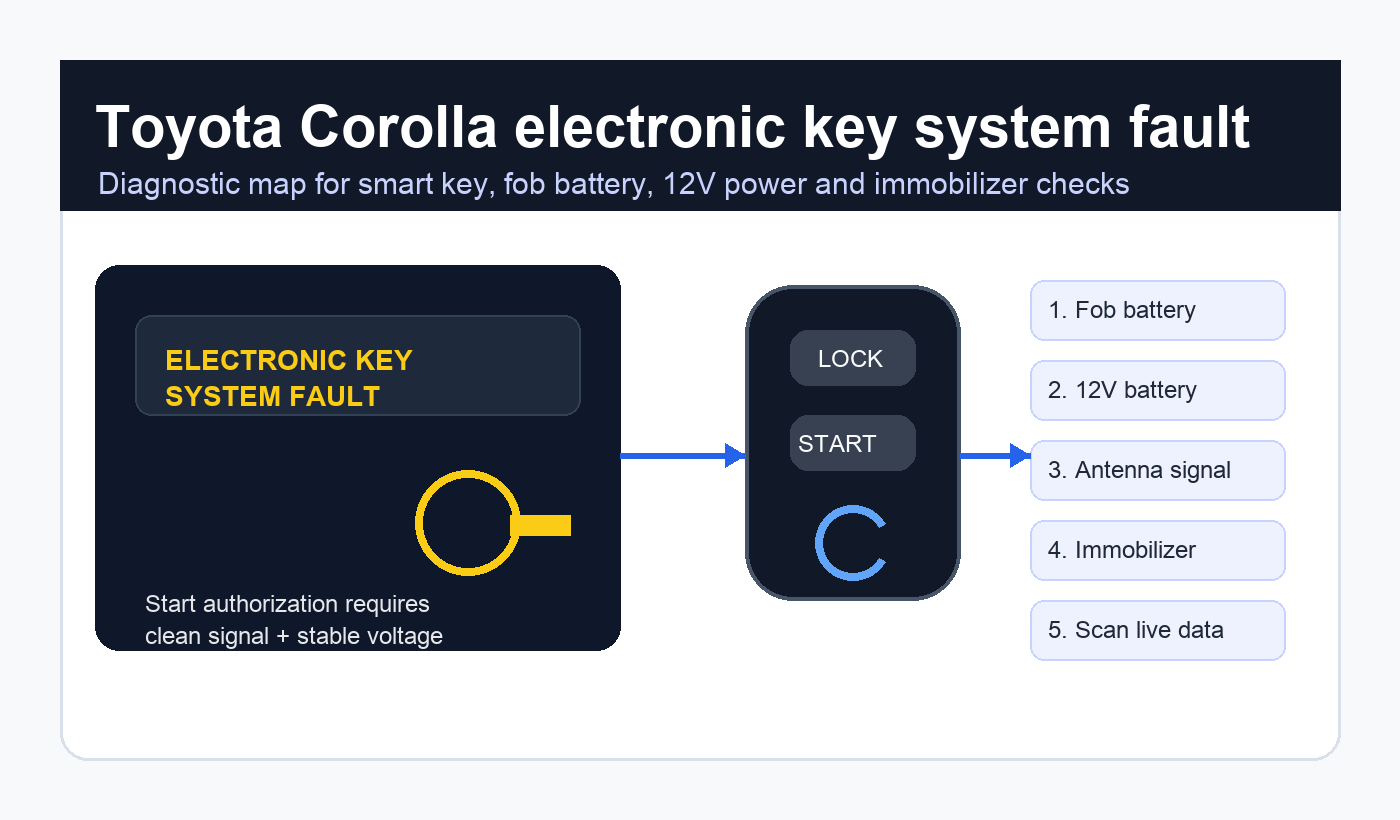

For Toyota electronic key warning logic, our Toyota Corolla electronic key system fault article is useful when the warning is vehicle-side rather than just a fob battery.

For general key programming context, our Opel Mokka key programming guide shows the same security principle: correct key type, proof of ownership and capable equipment matter more than the shell shape.

Frequently asked questions

Can I change the key battery myself?

Toyota Yaris Hybrid remote key battery replacement is often owner-level work if you use the correct coin cell and avoid damaging the case or contacts.

Does changing the fob battery erase programming?

No, normal battery replacement should not erase immobilizer or remote registration. If the key fails afterward, check battery orientation and contacts.

Can I program a Toyota Yaris Hybrid key myself?

Some simple remote procedures exist on older cars, but smart keys and immobilizer functions usually require Toyota-capable equipment.

Why does the car say key not detected?

Possible causes include weak fob battery, interference, low 12-volt battery, antenna faults, damaged key or smart-entry system trouble.

Is a used smart key safe to buy?

Only if compatibility and reusable status are confirmed. Many used smart keys are locked, wrong frequency or wrong generation.

What is the best time to make a spare?

When you still have one working key. All-keys-lost work is usually more expensive and more complicated.

Final verdict

Toyota Yaris Hybrid remote key problems should be diagnosed in layers: fob battery, spare key comparison, emergency start, 12-volt battery, remote-locking function, immobilizer authorization and vehicle-side smart-entry faults. That order prevents unnecessary key replacement.

The best Toyota Yaris Hybrid remote key decision is to keep a working spare, use the correct battery, avoid dubious online fobs, and choose a Toyota dealer or qualified locksmith when registration is needed. A key is small, but on a hybrid Toyota it is part of a larger security and electronic start system.

Citroen C5 X7 key programming: complete guide to remotes, transponders, PIN codes and Diagbox

Citroen C5 X7 key programming is one of those jobs that sounds simple until the owner discovers that a C5 X7 key is not just a cut blade with a battery inside. It is a remote control, a transponder, an immobilizer identity, a mechanical emergency key and, on some cars, part of a wider comfort and security system. A new key can fail because the blade is wrong, the remote is not synchronized, the transponder is not learned, the confidential code is missing, or the diagnostic tool is trying to write to the wrong vehicle configuration.

This guide explains Citroen C5 X7 key programming for owners, locksmiths and careful DIY diagnosticians who want to understand what must happen before money is spent on a key shell, a remote board or a dealer visit. It covers the C5 X7 generation, key types, remote reinitialization, transponder coding, PIN/confidential code issues, Lexia and Diagbox workflow, BSI precautions, used-key traps and the difference between a dead remote and an immobilizer no-start.

Quick answer

The short Citroen C5 X7 key programming answer is this: remote synchronization may be possible after a battery change, but adding or replacing a key normally requires a compatible blank key, correct blade cutting, the vehicle confidential code/PIN, and a PSA-capable diagnostic tool such as Lexia or Diagbox to teach the transponder to the car. A used remote can sometimes be reused only for shell or blade parts; the locked immobilizer transponder is usually the hard limit.

What owners need to know first

This guide is written for owners, buyers and technicians dealing with Citroen C5 X7 key programming in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

What the C5 X7 actually is

A precise Citroen C5 X7 key programming article has to start with the model. Enthusiasts often use C5 X7 for the second-generation Citroen C5 sold from 2008 in saloon and Tourer forms. The wider Citroen C5 history is useful because older first-generation C5 procedures and parts are often mixed into online advice for the later X7. The vehicle generation, BSI software and key style matter.

For broad model context, the Citroen C5 reference identifies the second-generation C5 and its place in the model line. For official documentation access, PSA/Stellantis service information is routed through Service Box, which is the higher-authority starting point for procedures and parts identity.

Remote synchronization is not full key programming

The most common Citroen C5 X7 key programming misunderstanding is the difference between remote reinitialization and immobilizer programming. Remote synchronization teaches the car and fob button operation to talk again after a weak battery or loss of sync. Immobilizer programming teaches the car that a transponder is authorized to start the engine. One affects locking. The other affects starting.

If the buttons do not lock the doors but the car starts, you are probably dealing with remote synchronization, battery, microswitch, antenna or receiver issues. If the starter turns but the engine is not authorized, or the dash reports an anti-theft fault, the transponder side becomes the priority. A complete Citroen C5 X7 key programming plan treats those as two separate systems.

Parts needed before coding a spare

A proper Citroen C5 X7 key programming job normally starts before the diagnostic tool is connected. You need the correct key blade profile, a compatible remote frequency for the market, a suitable transponder, a good fob battery, and the confidential code. The wrong blank may look identical on a marketplace photo but fail at the blade, radio or immobilizer stage.

The safest route is to identify the car by VIN, match the original key type, cut the blade accurately, and only then program the transponder. A cheap unverified key can waste more time than a better blank purchased from a specialist who understands PSA key families.

The confidential code or PIN

The central obstacle in Citroen C5 X7 key programming is often the PIN, sometimes called the confidential code. It is not the radio code and it is not printed on the key shell. It is the security code used by the diagnostic session to authorize key learning. Without it, a locksmith or dealer may need to retrieve the code through authorized channels or advanced specialist methods.

Do not guess the PIN. Repeated wrong security attempts can lock out a session or create unnecessary delay. If the car came with a code card, verify it belongs to that VIN. If it did not, plan the job with a professional who can obtain or extract the correct code legally and safely.

In practical terms, Citroen C5 X7 key programming should be scheduled only after the PIN question is solved, because the best blank key and the best diagnostic tool still cannot complete security learning without authorization.

Diagbox and Lexia workflow

Most serious Citroen C5 X7 key programming work uses PSA diagnostic software. The technician connects to the vehicle, identifies the BSI/body computer, enters the confidential code, selects key learning, declares the number of keys to be programmed and presents each key in sequence. On many PSA systems, all keys that should continue working must be present during the learning session.

That last point is important. If you program only one key when the procedure expects the full set, an old spare may stop starting the car. A disciplined Citroen C5 X7 key programming session gathers every working key before beginning.

Typical diagnostic sequence

A typical workshop sequence is: stabilize voltage, run a diagnostic scan, confirm VIN and BSI communication, check existing key count if available, enter the confidential code, select replacement/learning of keys, follow tool prompts, test every key for start authorization, then synchronize or test remote locking. The exact screen wording varies by software version.

BSI precautions before any key learning

A careful Citroen C5 X7 key programming procedure respects the BSI. The body computer manages security, locking, wake-up states and many comfort functions. Low voltage, impatient ignition cycling or interrupted coding can turn a simple key job into a broader electrical diagnosis. Connect a stable battery maintainer and avoid opening doors, pressing buttons or disconnecting equipment mid-procedure unless instructed.

Owners often underestimate voltage. A battery strong enough to unlock doors may still dip during a diagnostic session. On an older C5 X7 with many electronic systems, stable supply is a practical requirement, not workshop theatre.

Can a used C5 X7 key be programmed?

The honest Citroen C5 X7 key programming answer for used keys is usually disappointing. The shell, blade carrier and sometimes buttons can be useful as parts, but an already learned immobilizer transponder is often locked to the original vehicle and cannot simply be taught to another C5. Some specialists can renew certain electronics, but a random used key is risky unless you know exactly what component you are buying.

If the seller promises “just code it with Diagbox,” ask whether the transponder is virgin, whether the remote frequency matches, and whether the board is confirmed compatible with C5 X7. Vague answers are a warning sign.

Remote reinitialization after battery replacement

Some owners search Citroen C5 X7 key programming after replacing a coin cell in the fob. In that situation, full immobilizer coding may not be needed. The usual concept is to insert the key, switch ignition on, press a lock or unlock button for a short period, switch off, remove the key and test the remote. Exact timing and button choice can vary, so the owner’s manual remains the reference.

If the remote worked before the battery change and the engine still starts, begin with battery polarity, battery quality, contact tension, button feel and reinitialization. Do not pay for immobilizer coding until the symptom proves that starting authorization is affected.

This is where Citroen C5 X7 key programming becomes a diagnostic decision rather than a fixed recipe: the same plastic fob can have a healthy transponder and a dead remote circuit, or the opposite.

No-start after key work

If Citroen C5 X7 key programming ends with a no-start, slow down. Check whether the immobilizer warning is present, whether the starter cranks, whether the engine ECU communicates, whether the BSI recognizes a key, and whether the original key still works. A no-start after key work can be caused by an unlearned transponder, wrong key type, BSI communication issue, low battery or unrelated fault exposed during the session.

For general scanner-language confusion, our OBD2 protocol list guide helps explain why the tool and vehicle network must communicate correctly before diagnosis is trusted.

How to brief a locksmith or dealer

A professional Citroen C5 X7 key programming appointment goes better when the owner brings the VIN, registration documents, every existing key, the confidential code if available, and a clear symptom history. Say whether the problem is lost key, spare key addition, remote not locking, key battery changed, no-start, or water-damaged fob.

Ask whether the quote includes blade cutting, transponder learning, remote testing and verification of all keys. If the car has only one working key, explain that upfront. Losing the last working key usually makes the job more urgent and more expensive.

DIY limits

DIY Citroen C5 X7 key programming is realistic for understanding symptoms, replacing a fob battery, reinitializing a remote and preparing the correct information. It becomes less friendly when confidential code access, transponder learning and BSI security are involved. A clone diagnostic interface with unstable software can be more expensive than a locksmith if it interrupts a security procedure.

The owner who wants to DIY should practice reading faults and identifying modules before attempting key learning. If basic BSI communication is unreliable, stop there. Security coding should not be the first experiment with an unfamiliar diagnostic setup.

A sensible DIY boundary for Citroen C5 X7 key programming is to diagnose, document and prepare, then hand the security-writing step to a specialist if the tools, PIN or voltage support are uncertain.

Cost factors

The price of Citroen C5 X7 key programming varies because the job may be a simple remote reinitialization, a spare key addition, a lost-all-keys recovery, a damaged BSI investigation or a wrong-part correction. The cheapest advertised key price rarely includes the whole job. Blade cutting, PIN access, diagnostic time, travel and verification all matter.

Owners comparing quotes should ask for the finished outcome: a cut key that starts the car, locks/unlocks remotely where applicable, and leaves all existing keys working. That is more useful than comparing only the cost of the blank.

When comparing quotes for Citroen C5 X7 key programming, also ask what happens if the supplied aftermarket key is incompatible, because responsibility for the part can change the final bill.

Common mistakes

The biggest Citroen C5 X7 key programming mistake is buying a used key and assuming software can make it new. The second is confusing remote sync with immobilizer coding. The third is starting without the confidential code. The fourth is programming only one key when all keys should be present. The fifth is ignoring battery voltage during a BSI security session.

For a comparable immobilizer topic, our Opel Mokka key programming guide shows why modern key work is part electronics, part security authorization and part mechanical key cutting.

Diagnostic checklist

A structured Citroen C5 X7 key programming checklist prevents wrong spending. First, identify the symptom. Second, test the existing key mechanically and electronically. Third, verify vehicle battery health. Fourth, scan BSI and engine ECU. Fifth, confirm the confidential code. Sixth, source a correct virgin key. Seventh, code all keys in one session. Eighth, test remote locking and engine start with every key.

If the issue is an electronic key warning rather than a Citroen-specific learning session, our Toyota Corolla electronic key system fault article is useful for understanding how dashboard wording can point to battery, antenna, receiver or authorization problems rather than the key alone.

That final test is part of Citroen C5 X7 key programming, not a courtesy: every key should lock, unlock where applicable and start the engine before the job is considered complete.

Frequently asked questions

Can I program a C5 X7 key with only the buttons?

No, not for full immobilizer learning. Citroen C5 X7 key programming may include a button-based remote reinitialization after battery replacement, but adding a new start-authorized key normally requires diagnostic access and the confidential code.

Do I need Diagbox?

For most full key learning, yes, a PSA-capable diagnostic path is needed. Some locksmith tools can perform the same security function, but the principle is the same: the BSI must authorize and learn the transponder.

Will a used key from another C5 work?

Usually not as a complete plug-and-play key. The shell may be useful, but the learned transponder is the common obstacle. Buy a correct virgin key or work with a specialist who can confirm renewability.

Why does my key start the car but not unlock it remotely?

The immobilizer transponder can work while the remote section fails. Battery, button contacts, board damage, frequency mismatch and remote synchronization are the first areas to check.

Can a locksmith do the job instead of a dealer?

Yes, many automotive locksmiths can handle Citroen C5 X7 key programming if they have the correct key stock, cutting equipment, PSA diagnostic capability and legal access to the required security code.

Should I erase old lost keys?

If a key is lost and could be used to steal the vehicle, discuss deleting or not relearning that key during the session. Security planning is part of the job, not an afterthought.

Final verdict

Citroen C5 X7 key programming is best treated as a controlled security procedure rather than a quick internet trick. If the remote only lost synchronization, a manual reinitialization may solve it. If a new spare or replacement key must start the car, expect correct parts, a cut blade, a confidential code, a PSA-capable diagnostic session and careful testing of every key.

The practical path is simple: identify the exact C5 X7, separate remote symptoms from immobilizer symptoms, avoid used-key traps, protect the BSI with stable voltage, and work from the official documentation or a competent locksmith. Done that way, Citroen C5 X7 key programming becomes predictable instead of expensive guesswork.

Audi A3 8L key programming: complete guide to remote sync, immobilizer coding and spare keys

Audi A3 8L key programming is easy to misunderstand because “programming a key” can mean two different jobs on the first-generation Audi A3. One job is synchronizing the remote buttons so the car locks and unlocks. The other is matching the transponder chip to the immobilizer so the engine keeps running. A remote can unlock the doors and still fail to start the car, and a transponder can start the engine while the remote buttons do nothing.

This guide explains Audi A3 8L key programming for owners searching from Polish phrases such as jak zakodować kluczyk Audi A3 8L and kodowanie kluczyka Audi A3 8L. It covers the A3 8L generation, flip keys, key fob batteries, remote control matching, immobilizer II and III context, PIN/SKC requirements, VCDS/diagnostic tools, locksmith options, common mistakes and used-car buying checks.

Quick answer: remote sync is not immobilizer programming

The short Audi A3 8L key programming answer is this: if the buttons do not lock or unlock the car but the engine starts and keeps running, you probably need remote synchronization or a remote/fob repair. If the engine starts and then dies, or the immobilizer warning flashes, you need transponder/immobilizer key matching, which usually requires the correct PIN/SKC and a diagnostic tool such as VCDS or professional locksmith equipment.

What owners need to know first

This guide is written for owners, buyers and technicians dealing with Audi A3 8L key programming in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

Audi A3 8L context

A serious Audi A3 8L key programming starts with the car generation. The 8L is the first-generation Audi A3, produced from the late 1990s into the early 2000s. Depending on year and market, the car may use different immobilizer generations, remote frequencies, key styles and diagnostic procedures. That is why copying one forum procedure without checking year, cluster and key type can fail.

For model-generation context, the Audi A3 reference is useful. For immobilizer key matching concepts in VAG vehicles, the Ross-Tech immobilizer guide is a technical reference many technicians use: Ross-Tech Immobilizer III key matching.

Remote control synchronization

The first branch of Audi A3 8L key programming is remote control synchronization. This is the part that controls lock, unlock and sometimes trunk release. It does not authorize the engine. A remote can lose synchronization after battery replacement, long storage, button wear or module issues. Before assuming the key is unprogrammed, install a good battery, check button feel and test the central locking system from the door lock.

On older cars, the central locking system itself may be tired. Door lock microswitches, comfort-module wiring, vacuum-pump style locking components on some Volkswagen Group cars, broken door harnesses and blown fuses can all make a good remote look bad. If the car does not respond consistently from the mechanical lock or interior switch, solve the vehicle-side locking fault before blaming the key.

Immobilizer transponder programming

The second branch of Audi A3 8L key programming is immobilizer programming. The transponder chip inside the key must be accepted by the vehicle’s immobilizer system. If the chip is not matched, the car may start briefly and then shut off. This is not fixed by pressing lock and unlock buttons.

Immobilizer matching often requires a valid PIN/SKC, a compatible key/transponder and a diagnostic tool. Depending on immobilizer generation, all keys may need to be present during matching because the adaptation process can define how many keys are authorized. Losing track of that step can accidentally leave an old key unmatched.

Remote sync versus transponder coding

The most important table in any Audi A3 8L key programming is the difference between remote and transponder work. Owners often buy a used flip key, cut the blade, sync the remote, and then discover the engine will not stay running because the transponder is wrong or not matched.

What you need before programming

A successful Audi A3 8L key programming job starts before the car is connected to a tool. You need the correct key blade, correct remote frequency, compatible transponder chip, working car battery, stable diagnostic connection, PIN/SKC if immobilizer matching is required, and all keys that should remain authorized.

VCDS and diagnostic-tool reality

A practical Audi A3 8L key programming must be honest about VCDS. VCDS can perform many adaptation and matching procedures when the required security access information is available, but it is not a magic key generator. If you do not have the PIN/SKC, or if the immobilizer generation/key type is incompatible, the process stops.

For owners, the safest path is often a competent automotive locksmith familiar with Volkswagen Audi Group vehicles. They can cut the key, confirm transponder type, retrieve or work with security data where legally permitted, and test both remote and immobilizer functions.

A workshop handling Audi A3 8L key programming should explain which part of the key is being repaired. If the quote does not mention remote, blade and immobilizer separately, ask for clarification.

It is also worth asking whether the shop will test every key after the procedure. A proper job ends with each key starting the engine, each remote operating the locks, and the immobilizer warning behaving normally. The owner should leave knowing which keys are fully functional and which, if any, are only mechanical backups.

Typical workflow

The safest Audi A3 8L key programming workflow is to divide the problem. First prove the mechanical blade works. Then prove the remote section works. Then prove immobilizer authorization. Mixing all three at once makes the diagnosis messy.

Keep notes during the process. Write down whether each key opens the door manually, whether each remote locks and unlocks, whether each blade turns the ignition, and whether each transponder keeps the engine running. That simple table prevents confusion when several old keys, copied shells or used remotes are on the bench at the same time.

Battery voltage and diagnostic stability

Low voltage can ruin Audi A3 8L key programming work. A weak battery can interrupt adaptation, confuse modules or cause communication failures. Before matching keys, charge the battery or use a stable support supply. This matters especially on older cars where battery age, corroded terminals and comfort-module current draw may already be problems.

If a scanner fails to connect, do not immediately blame the immobilizer. Check the OBD port, fuses, K-line communication and adapter quality. Our OBD2 protocol list guide explains why connection problems can come from protocol and diagnostic-tool mismatch, not just from the module you want to access.

Stable diagnostics matter because Audi A3 8L key programming can fail midway if communication drops, leaving the owner unsure which keys are currently accepted.

Common failure scenarios

Many Audi A3 8L key programming failures are predictable. A used key from another car may have the wrong transponder or a locked chip. A cheap case swap may move the remote board but leave the transponder pill behind. A blade may be cut correctly while the electronic side is wrong. A remote may sync but only work at very close range because the circuit board or battery contacts are tired.

Case swaps are especially risky for owners doing a cosmetic repair. The tiny transponder capsule can be glued inside the old shell or hidden near the blade area. If it is lost, broken or left in the old case, the new-looking key may turn the ignition but fail authorization. Slow, careful disassembly matters more than force.

Used Audi A3 8L buying checks

A used-car angle belongs in a Audi A3 8L key programming because many older A3 8L cars are sold with one tired key. One working key is a risk. It may start the car today, but if it breaks or gets lost, the cost of recovery is higher than making a spare while the car still runs.

Before buying, test remote buttons, manual door lock, ignition start, immobilizer warning behavior and spare key availability. Ask whether the cluster, ECU, locks or comfort module were replaced. Mismatched modules can make key work harder and more expensive.

A used-car Audi A3 8L key programming concern should reduce the price if the seller has only one key, no PIN history and no proof of previous matching work.

Also inspect the physical locks. A worn ignition barrel, sticky door lock or mismatched boot lock can suggest previous repairs or partial lock-set replacement. If one key does not operate every mechanical lock, the car may have a mixed lock set, which changes the cost of making a clean spare.

Security and legal reality

Any responsible Audi A3 8L key programming must mention security. Immobilizer systems exist to prevent theft. A legitimate locksmith or workshop should require proof of ownership before cutting or matching keys. Be cautious with online advice that promises bypasses, deletes or shortcuts; those can be illegal, unsafe and damaging to the car.

Security is also why Audi A3 8L key programming should never be treated like a simple radio-pairing trick when the engine authorization side is involved.

Documentation matters for the next owner as well. Keep invoices showing key cutting, transponder matching and remote repair. They prove the work was done legitimately and make future diagnosis easier if the cluster, ECU or comfort system is serviced later.

For another key-programming topic on Xmotoparts, see our Opel Mokka key programming guide. The brand differs, but the same principle applies: separate remote functions from immobilizer authorization and protect the security process.

Remote-only troubleshooting checklist

If your Audi A3 8L key programming problem is remote-only, keep the checklist simple. Replace the fob battery, clean contacts, inspect button microswitches, verify the key’s part number/frequency, test the spare, check central locking from the door and scan the comfort system if the car-side receiver is suspect.

A remote-only Audi A3 8L key programming diagnosis should end with a lock/unlock range test from several positions around the car, not only beside the driver door.

Immobilizer-only troubleshooting checklist

If your Audi A3 8L key programming problem is immobilizer-only, focus on transponder and authorization. Does the immobilizer light flash? Does the engine start and then stop? Does another key work? Was the cluster changed? Is the chip new and compatible? Do you have the PIN/SKC? These questions are more important than pressing remote buttons.

An immobilizer-only Audi A3 8L key programming diagnosis should also record whether the fault began after battery disconnection, cluster replacement or key case repair.

For a broader smart-key comparison on a modern car, our Toyota RAV4 smart entry and start system malfunction guide shows how key detection and start authorization remain separate ideas even when the hardware is newer.

Frequently asked questions

Can I program an Audi A3 8L key myself?

You may be able to synchronize the remote buttons yourself, but full Audi A3 8L key programming for the immobilizer usually needs the correct PIN/SKC, compatible transponder and diagnostic equipment.

Why does the engine start and then stop?

That is a classic immobilizer symptom. The mechanical blade turns the ignition, but the transponder is not authorized, so the engine is shut down.

In that situation, Audi A3 8L key programming means transponder matching, not remote button synchronization.

Can a used key from another Audi work?

The remote may or may not sync depending on part number and frequency, but the transponder chip may be wrong, locked or already matched. A used key is not automatically a usable spare.

Do I need all keys present?

Often yes for immobilizer matching. Some procedures set the number of keys to be matched, so any missing key may stop working afterward.

Plan Audi A3 8L key programming with every key on the table, including old spares that still need to start the car.

What is the safest route?

The safest Audi A3 8L key programming route is a VAG-experienced locksmith or workshop with proof of ownership, correct key stock, diagnostic tools and knowledge of the 8L immobilizer generation.

Final verdict

Audi A3 8L key programming is not one single procedure. It is three separate questions: does the blade fit, does the remote operate central locking, and does the immobilizer accept the transponder? Once you separate those questions, the repair becomes much less confusing.

For most owners, the smart move is to make a proper spare key while at least one working key exists. Record the key type, use a compatible transponder, keep all keys present during matching, and avoid shortcuts. Done properly, Audi A3 8L key programming restores both convenience and security without turning an old A3 into a guessing game.

Toyota RAV4 smart entry and start system malfunction: complete diagnosis guide for smart key, 12V battery and start faults

Toyota RAV4 smart entry and start system malfunction is the warning that turns a normal errand into a diagnostic question: is the key fob weak, is the 12V battery low, is the smart key system disabled, is there interference, or is the vehicle seeing a real immobilizer or antenna fault? The RAV4’s smart entry and push-button start system is convenient, but it depends on several pieces working together at the same time.

This guide explains Toyota RAV4 smart entry and start system malfunction as a practical owner and technician workflow. It covers weak key batteries, dead 12V batteries, key not detected messages, push-button start behavior, door-handle sensors, interior antennas, immobilizer logic, remote start confusion, interference, spare-key testing, emergency start procedure, dealer diagnostics and used-car buying checks.

Quick answer: what the warning usually means

A Toyota RAV4 smart entry and start system malfunction warning usually means the vehicle cannot reliably confirm the smart key or cannot complete the start authorization process. The most common causes are a weak key fob battery, low 12V battery voltage, key fob damage, radio interference, smart key deactivation, a door-handle sensor fault, interior antenna fault, immobilizer issue, blown fuse, wiring fault, or previous key programming problem.

What owners need to know first

This guide is written for owners, buyers and technicians dealing with Toyota RAV4 smart entry and start system malfunction in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

Start with the key fob battery

The easiest Toyota RAV4 smart entry and start system malfunction check is the key fob battery. A weak coin cell can still lock or unlock the vehicle at close range but fail when the car tries to confirm the key inside the cabin. Replace the fob battery with the correct type, install it in the correct orientation, and test again with the fob close to the start button.

If you have a spare key, test it before doing anything expensive. If the spare works normally, the first key may have a weak battery, damaged circuit board, worn buttons, water intrusion or lost registration. If both keys fail, the issue is more likely vehicle-side, voltage-related or environmental.

When Toyota RAV4 smart entry and start system malfunction disappears with the spare key, document that result before buying parts. The vehicle has just told you the problem is probably key-side.

Check the 12V battery before blaming the smart key system

A low 12V battery is one of the most common hidden causes of Toyota RAV4 smart entry and start system malfunction. Smart entry, immobilizer authorization, body control modules, antennas and push-button start logic all need stable voltage. A RAV4 hybrid still uses a 12V auxiliary battery for many control functions, so the traction battery does not remove this possibility.

When Toyota RAV4 smart entry and start system malfunction appears together with other strange warnings, battery testing should come before key programming. Modern Toyotas can produce misleading messages when voltage drops.

Emergency start procedure

Many owners discover Toyota RAV4 smart entry and start system malfunction when the car says the key is not detected. On many Toyota smart key vehicles, the emergency procedure is to hold the key fob close to the engine switch/start button and then press the button as directed in the owner’s manual. This allows the vehicle to read the key at very short range when the fob battery is weak.

Always verify the exact procedure for your year in Toyota’s official manual library: Toyota owner’s manuals and warranty information. Model year matters, and hybrid/start sequence wording can differ.

If Toyota RAV4 smart entry and start system malfunction appears during a trip, the emergency start method can be the difference between towing and reaching a safe repair location.

Smart key deactivation and interference

A Toyota RAV4 smart entry and start system malfunction can also appear when the smart key system is disabled or blocked by interference. Some Toyota vehicles allow smart key functions to be customized or disabled. Strong radio interference, other keys, metal cases, phone chargers, dash cameras, aftermarket alarms and poorly installed electronics can also affect detection.

For a similar Toyota-family key warning, our Toyota Corolla electronic key system fault guide covers many of the same low-voltage and fob-battery principles. The RAV4 wording may differ, but the diagnostic hierarchy is closely related.

Door-handle sensors and entry antennas

Door-handle behavior gives useful clues in a Toyota RAV4 smart entry and start system malfunction diagnosis. If the vehicle starts normally but touch entry does not work on one door, the issue may be a handle sensor, wiring, antenna area or local damage. If all doors fail and the car also struggles to start, think broader: fob, battery, smart key ECU, body control system or vehicle voltage.

Water intrusion, collision repair, door replacement and previous wiring work can create intermittent entry faults. A door-handle sensor problem may not mean the immobilizer is bad. Separating entry detection from start authorization prevents unnecessary parts replacement.

A door-specific Toyota RAV4 smart entry and start system malfunction pattern should make you inspect that door and handle circuit before replacing keys or body modules.

Interior antennas and key detection

The start side of a Toyota RAV4 smart entry and start system malfunction depends on the vehicle detecting the key inside the cabin. Interior antennas help determine whether the authorized key is present. If an antenna, harness or control module cannot confirm key location, the vehicle may refuse to start even though the fob can lock the doors.

Key programming and replacement fobs

A Toyota RAV4 smart entry and start system malfunction after buying a used RAV4 can come from poor key history. Aftermarket fobs, partially registered keys, lost-key situations and previous immobilizer work can create confusing symptoms. A key can physically fit, lock the doors or appear similar while not being properly registered for all smart functions.

If you have only one key, make a second working key before the first one fails. Our Opel Mokka key programming guide is for a different brand, but the lesson is universal: key programming is cheaper and safer when at least one valid key still works.

Fuses, wiring and water intrusion

Electrical basics still matter with Toyota RAV4 smart entry and start system malfunction. Check relevant fuses, body-control power feeds, grounds, door harnesses, water leaks and previous accessory wiring. A dash camera, alarm, remote-start add-on or tracking device installed poorly can create low-voltage or communication issues that appear as smart key faults.

When a scan tool is needed

A stubborn Toyota RAV4 smart entry and start system malfunction often needs Toyota-capable diagnostics. Generic OBD2 readers may not show smart key, body ECU, immobilizer or certification ECU data. Toyota Techstream or an equivalent professional tool can read body codes, smart key status, antenna data, key registration information and customization settings.

If the car has body-related codes rather than engine codes, a basic scanner may say nothing is wrong. For protocol and scanner limitations, see our OBD2 protocol list guide. The correct tool matters as much as the correct part.

Before a dealer visit, write down which key was used, whether the warning appeared before or after unlocking, whether the car had been sitting, and whether the emergency method worked. That information helps separate a weak fob from a vehicle-side detection fault.

A technician will usually want to know whether the fault is entry-only, start-only, or both. Entry-only complaints point toward handle sensors, exterior antennas, customization or door wiring. Start-only complaints point more toward interior detection, immobilizer authorization, key registration or voltage. When both entry and start fail together, the first suspects are fob condition, 12V battery health, smart key settings and broader body ECU power supply.

It is also useful to test the vehicle after it has slept overnight and again after a normal drive. Some weak batteries recover enough voltage after charging to hide the issue briefly, while some modules only report faults after a complete sleep/wake cycle. That timing detail can prevent a false “no fault found” result.

Recall and service campaign checks

Recall and service campaign status should be checked when diagnosing Toyota RAV4 smart entry and start system malfunction, especially on a used vehicle with unknown history. Toyota’s owner resources can help with manuals and ownership information, while official dealer systems can check VIN-specific campaigns. For U.S. safety recall lookup, owners can also use NHTSA recalls.

When Toyota RAV4 smart entry and start system malfunction follows recent dealer work, ask for the repair order and confirm whether any key, battery or body ECU procedure was performed.

A recall check does not replace diagnosis. It only tells you whether a safety campaign may apply. A weak key battery, low 12V battery or damaged door harness still needs normal testing.

Used RAV4 buying checklist

A used vehicle showing Toyota RAV4 smart entry and start system malfunction should not be dismissed as “just a fob battery” until proven. Test both keys, touch entry on every door, push-button start, hatch behavior, remote functions, warning history and 12V battery health. Ask whether the vehicle had water damage, collision repair, alarm installation or lost-key recovery.

Repair priority order

The best repair order for Toyota RAV4 smart entry and start system malfunction is simple: fob battery, spare key, 12V battery, emergency start procedure, interference check, settings/customization, fuses and wiring, then professional scan-tool diagnosis. Replacing modules before checking these basics is usually the expensive way around the problem.

Mistakes owners make

The most common mistake with Toyota RAV4 smart entry and start system malfunction is replacing the key fob without testing the 12V battery. The second is buying an online fob and assuming it will self-program. The third is clearing codes or disconnecting the battery before recording the original warning and symptoms.

Another mistake is ignoring intermittent symptoms. A warning that appears once after the car sits for a week may be an early 12V battery clue. A warning that appears after rain may point toward water intrusion. A warning that happens only in one parking location may involve interference.

Intermittent Toyota RAV4 smart entry and start system malfunction deserves notes on weather, parking location, battery age and which key was used, because those details often reveal the cause.

Frequently asked questions

Can a weak key battery cause this warning?

Yes. A weak fob battery is one of the simplest causes of Toyota RAV4 smart entry and start system malfunction. Replace it first and test the spare key if available.

Can the RAV4 start if the key fob battery is dead?

Often, yes, using the emergency procedure where the fob is held close to the start button. Check the exact procedure in the owner’s manual for your year.

Can a low 12V battery cause smart key faults?

Yes. Low voltage can trigger multiple warnings and make the smart entry/start system behave unpredictably. Load-test the 12V battery before deeper diagnosis.

Do I need Toyota Techstream?

For persistent Toyota RAV4 smart entry and start system malfunction faults, a Toyota-capable scan tool may be needed because generic OBD2 readers often cannot see smart key, immobilizer and body ECU data.

Is this the same as a bad immobilizer?

Not always. It can be a fob battery, 12V battery, antenna, door sensor, wiring, settings, interference or key registration issue. Immobilizer faults are only one possibility.

A confirmed immobilizer-related Toyota RAV4 smart entry and start system malfunction should be handled with Toyota-capable diagnostics because guessing can lock you into expensive key and ECU decisions.

Final verdict

Toyota RAV4 smart entry and start system malfunction should be approached from simple to complex. Start with the fob battery and spare key, then test the 12V battery, try the emergency start method, remove interference, inspect fuses and wiring, and only then move to Toyota-capable diagnostics. Most owner-solvable cases live in the first half of that list.

If the warning remains, do not guess at expensive modules. A proper scan can show whether the RAV4 sees the key, which antenna responds, whether the body ECU stores smart key codes, and whether key registration is correct. With that evidence, Toyota RAV4 smart entry and start system malfunction becomes a solvable electrical diagnosis rather than a mysterious dashboard message.

In short, Toyota RAV4 smart entry and start system malfunction is best solved by evidence: key test, battery test, emergency start result, scan data and repair history.

OBD2 protocol list: the complete practical guide to OBD-II communication protocols

OBD2 protocol list is one of the most useful searches when a scan tool will not connect, an ELM327 adapter shows “unable to connect,” or a vehicle uses pins that do not match what the owner expected. OBD-II is often described as one system, but the 16-pin connector can carry several different communication protocols depending on model year, market, manufacturer and vehicle type.

This guide explains the OBD2 protocol list in a practical way: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP2000, ISO 15765-4 CAN, 11-bit CAN, 29-bit CAN, 250 kbps CAN, 500 kbps CAN, J1962 connector pins, EOBD/JOBD context, ELM327 compatibility, J1939 heavy-duty differences and why protocol auto-detection sometimes fails.

Quick answer: the standard OBD2 protocols

The standard OBD2 protocol list usually includes five main OBD-II protocol families: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP2000 and ISO 15765-4 CAN. CAN has several variants, commonly separated by 11-bit or 29-bit identifiers and 250 kbps or 500 kbps data rates. Since the late 2000s, CAN became the dominant OBD-II emissions diagnostic protocol on passenger vehicles in many markets.

What owners need to know first

This guide is written for owners, buyers and technicians dealing with OBD2 protocol list in the real world. It focuses on symptoms, checks, realistic repair decisions, legal limits where relevant, and the points worth confirming before buying parts or trusting a seller’s claim.

Why one connector does not mean one protocol

The first lesson in any OBD2 protocol list is that the physical connector and the communication protocol are not the same thing. The standardized diagnostic connector is the familiar 16-pin J1962-style port, but different vehicles populate different pins and speak different electrical languages. A tool can physically plug in and still fail to communicate if it does not support the vehicle’s protocol.

That is why a practical OBD2 protocol list should always be read together with the connector, the model year and the market where the vehicle was sold.

The broader OBD-II system provides access to diagnostic trouble codes, live data, readiness monitors and emissions-related information. A useful technical overview of the system and its protocol families is available in the On-board diagnostics reference.

SAE J1850 PWM

SAE J1850 PWM belongs near the top of the OBD2 protocol list because it appears on many older Ford-family vehicles. PWM means pulse width modulation. On the OBD connector, it typically uses pin 2 for Bus+ and pin 10 for Bus-. It is a two-wire bus and is associated with older American vehicles before CAN became dominant.

If a scan tool does not support J1850 PWM, it may power up from pin 16 and still fail to connect. That creates a common owner mistake: assuming the port is dead because the tool lights up but cannot talk. Power and communication are separate questions.

SAE J1850 VPW

SAE J1850 VPW is another important entry in the OBD2 protocol list. VPW means variable pulse width, and it is commonly associated with older General Motors applications. It generally uses pin 2 rather than the two-wire pin 2/pin 10 pattern seen on PWM vehicles.

ISO 9141-2

ISO 9141-2 is the K-line protocol many people meet when researching older European and Asian cars. In a practical OBD2 protocol list, this protocol is tied to pin 7 for K-line and sometimes pin 15 for L-line initialization. Communication is slower than modern CAN, and connection behavior can feel less immediate.

For older cars, a cheap adapter may struggle with initialization timing. That does not automatically mean the ECU is bad. It can mean the scan tool, adapter firmware, phone app or protocol selection is wrong.

ISO 14230-4 KWP2000

ISO 14230-4, commonly called KWP2000, is another K-line entry in the OBD2 protocol list. It can use 5-baud initialization or fast initialization depending on application. Like ISO 9141-2, it often uses pin 7, but the message structure and initialization behavior differ.

KWP2000 matters because many late pre-CAN cars sit in the awkward zone where generic tools may connect inconsistently. If an app has manual protocol selection, choosing the correct KWP variant can be the difference between a failed connection and full live data.

ISO 15765-4 CAN

ISO 15765-4 CAN is the modern centerpiece of the OBD2 protocol list. CAN uses pins 6 and 14 on the standard OBD connector and supports faster, more robust communication than older K-line and J1850 protocols. In many passenger vehicles, OBD requests use functional addressing and receive responses from ECU IDs in a defined range.

CAN is not one single setting. Many scanners distinguish 11-bit versus 29-bit identifiers and 250 kbps versus 500 kbps. A tool that supports only one CAN variant may fail on vehicles using another. A deeper technical reference for standard OBD data requests and service modes is the OBD-II PIDs reference.

OBD2 connector pin clues

A practical OBD2 protocol list should include connector pin clues, but pin clues are not absolute proof. Pin 16 should provide battery power. Pins 4 and 5 are grounds. Pins 6 and 14 suggest CAN. Pin 7 suggests K-line. Pin 2 suggests J1850 VPW or PWM context, and pin 10 paired with pin 2 suggests J1850 PWM.

ELM327 adapters and protocol auto-detection

Many people search OBD2 protocol list because an ELM327 adapter fails. The adapter may claim broad protocol support, but clone quality, firmware version, app behavior and vehicle timing matter. Auto-detect can fail when voltage is low, the ignition is not in the correct state, another module is holding the bus busy, or the adapter does not truly support the listed protocol.

When troubleshooting, try ignition on engine off, engine running, a different app, manual protocol selection and a known-good scanner. Do not diagnose the car until you have diagnosed the tool. Cheap adapters can be the weakest part of the chain.

For adapter buyers, the best OBD2 protocol list is the one your hardware truly supports, not the one printed on a marketplace listing.

A useful test is to connect the same adapter to a known-good vehicle from a similar era. If it fails there too, the problem is probably the adapter, app, phone permissions or cable rather than the original car. This saves time and avoids false ECU suspicion.

OBD-II services, modes and PIDs

The OBD2 protocol list tells you how the scanner communicates, but services and PIDs tell you what it asks for. Standard OBD-II services include current data, freeze-frame data, stored diagnostic trouble codes, clearing codes, monitor results, pending codes and vehicle information. PIDs such as coolant temperature, engine rpm, fuel trims and oxygen sensor values live inside those services.

Why a scanner powers up but cannot connect

One of the most common reasons people need an OBD2 protocol list is the scanner power paradox. The tool lights up because pin 16 has battery power and pins 4/5 provide ground, but communication still fails because the correct protocol pins are missing, damaged or unsupported by the tool.

Before blaming the ECU, check the vehicle battery, OBD fuse, connector pins, protocol compatibility and whether the tool works on another car. If a generic code reader fails but a professional scan tool connects, the vehicle is probably not the problem.

Heavy-duty vehicles and J1939

A complete OBD2 protocol list should mention SAE J1939 because truck and heavy-duty diagnostics often live in a different world. J1939 is CAN-based but uses different conventions, parameter group numbers and often different connectors, especially on heavy-duty vehicles. Some trucks may physically use an OBD-style connector while communicating with heavy-duty conventions.

This is why a passenger-car OBD app may be disappointing on a diesel truck, bus, tractor or industrial engine. The connector shape does not guarantee the diagnostic language.

Heavy-duty users should treat the OBD2 protocol list as a starting point and then confirm whether the vehicle really needs J1939-capable hardware and software.

EOBD, JOBD and regional differences

The OBD2 protocol list also changes by market language. EOBD is the European implementation of OBD emissions diagnostics, while JOBD is often used in Japanese-market context. The hardware may look familiar, and many generic services overlap, but model year, emissions rules and manufacturer support can affect what a generic scanner sees.

Imported vehicles can be tricky. A car with an OBD-style connector may not support the same generic OBD-II behavior expected from a U.S.-market vehicle of similar year. Always check market, model year and emissions label.

Regional terms can make the OBD2 protocol list look more complicated than it is, but the underlying question remains the same: which electrical protocol is the ECU speaking?

How to identify your vehicle protocol

The safest way to use an OBD2 protocol list is as a decision process. Start with vehicle year and market. Inspect connector pins. Use a scan tool with automatic protocol detection. If it fails, try manual selection based on pin clues. Then confirm with live data, not just a successful connection message.

A professional approach also checks the basics around the port itself. The diagnostic connector can be loose, pushed back into the trim, missing a terminal, or affected by a blown fuse that powers only the scan-tool side of the circuit. On some vehicles, cigarette lighter, accessory socket or interior fuse circuits share protection with diagnostic-port power. If the scan tool does not power up, find the power and ground issue before thinking about protocols. If it powers up but cannot communicate, then protocol support, bus wiring and module wake-up become the next questions.

Do not ignore ignition state. Some older vehicles communicate only with the key on, engine off. Others may show more stable live data with the engine running. Hybrid and start-stop vehicles can add another layer because the ignition state shown to the driver may not match the module state a basic scanner expects. A patient connection sequence often solves what looks like a compatibility problem.

Protocol list for quick reference

The following OBD2 protocol list is the owner-friendly reference most people need when matching a scanner to a car. It is not a substitute for the factory wiring diagram, but it quickly narrows the likely protocol.

Use the table as a clue, not a courtroom verdict. Manufacturers sometimes leave unused terminals in place, aftermarket harness repairs can change appearances, and imported vehicles may not follow the expectations of the country where the vehicle is now being diagnosed. The correct answer is the one confirmed by communication, wiring information and vehicle-specific data.

Common mistakes

The biggest mistake with an OBD2 protocol list is treating pin 16 power as proof that the scanner should communicate. Another mistake is buying a cheap adapter with a long protocol claim but poor firmware. A third mistake is assuming every post-2008 vehicle will behave identically simply because CAN is required in many passenger-car contexts.

Protocol identification is also not the same as diagnosis. If the tool connects and shows a code, you still need freeze-frame data, live data and normal diagnostic reasoning. For code-label confusion, our 07E8 code / 07E8 engine code guide explains why scanner wording can mislead owners.

A reliable OBD2 protocol list helps you connect; disciplined troubleshooting helps you avoid replacing parts just because a code appeared.

Internal resources for diagnostic context

For wiring and connector thinking, the Volkswagen stereo wiring color diagram guide is a useful reminder that pin position and wire function must be verified, not guessed. For older ignition and code diagnosis habits, see our Dodge 318 firing order article.

Frequently asked questions

What is the most common OBD2 protocol?

On modern passenger vehicles, ISO 15765-4 CAN is the most common entry in the OBD2 protocol list. Older vehicles may use J1850, ISO 9141-2 or ISO 14230-4 instead.

Can I tell the protocol from the connector pins?

Often, yes. Pins 6 and 14 suggest CAN, pin 7 suggests K-line, pin 2 suggests J1850, and pins 2 plus 10 suggest J1850 PWM. But pin clues should be confirmed with a scan tool and wiring data.

Why does my ELM327 not connect?

The adapter may not support the vehicle’s protocol, auto-detection may fail, voltage may be low, the OBD fuse may be blown, or the adapter firmware may be poor. Try a known-good scanner before blaming the ECU.

Are OBD2 and CAN the same?

No. CAN is one communication protocol used by OBD-II systems. The OBD2 protocol list also includes older J1850 and K-line protocols.

Do all vehicles support every PID?

No. OBD-II defines standard services and many PIDs, but vehicles support subsets, and manufacturers can add proprietary data. A successful connection does not mean every live-data item is available.

Final verdict

OBD2 protocol list is more than a list of names. It is the map between a vehicle, a connector, a scan tool and the diagnostic data you hope to read. If the protocol is wrong, the tool may power up and still tell you nothing. If the protocol is right, you can move from connection problems to real diagnostics.

Use the OBD2 protocol list as a workflow: identify year and market, inspect pins, match the scanner, confirm communication, then interpret codes and live data. That sequence prevents wasted parts, bad adapter purchases and false assumptions about a dead ECU.

Volkswagen stereo wiring color diagram: Safe VW Radio Wire Identification Guide

Volkswagen stereo wiring color diagram is one of those searches that looks simple until the dashboard trim is off and the factory harness is in your hand. A Volkswagen radio harness can include permanent battery power, ignition logic, ground, speaker outputs, illumination, antenna amplifier power, CAN-bus data, parking signals, reverse camera inputs, steering-wheel control communication and sometimes an external amplifier. Treating every wire color as universal is the fastest way to blow a fuse, wake a warning light or lose factory functions.

This long guide is written for owners installing an aftermarket head unit, diagnosing a silent speaker, repairing a cut harness or checking whether a previous owner damaged the radio wiring. It does not reproduce a proprietary factory service diagram. Instead, it explains how to read a VW stereo harness safely, how color conventions usually work, why model year matters, what a Quadlock connector changes, and how to confirm every circuit with a multimeter before connecting anything.

Topic research around this topic shows a narrow but very practical reader need. Exact public volume is not reliably available, but the phrase behaves like a high-intent long-tail question: people searching it are usually already working on a vehicle. Associated searches include VW radio wiring diagram, Volkswagen radio wire colors, VW Quadlock pinout, ISO radio connector, constant 12V wire, ignition switched 12V, ground wire, speaker polarity, CAN-bus adapter, antenna amplifier wire, illumination wire, reverse camera trigger, steering wheel controls, factory amplifier, fuse box radio fuse, aftermarket stereo harness, car audio installation, multimeter testing, wire harness adapter, Mk5 Golf radio wiring, Jetta stereo wiring, Passat radio harness, Polo radio wiring, Tiguan head unit wiring and RCD radio connector.

What owners need to know first

The danger with Volkswagen stereo wiring color diagram is not the idea of using colors. The danger is believing a color chart without checking the car. Volkswagen used different radios, trims, markets and production years, and many cars have been modified by previous owners. A brown wire is often ground in VW wiring, but that does not mean every brown-looking wire behind a radio is safe to connect. Dirt, fading, harness repairs and aftermarket splices can change the picture.

Modern Volkswagen audio systems also moved away from the older idea of a simple ignition wire. Many head units wake through CAN-bus messages. If an installer expects a classic switched 12V feed and grabs the wrong circuit, the result can be parasitic battery drain, a radio that stays on, or a dashboard fault. The correct answer is not only color; it is connector, pin position, measured voltage and vehicle specification.

That is why Volkswagen stereo wiring color diagram should be treated as a diagnostic method. The color may point you in the right direction, but the meter and connector view decide whether the wire is safe to use.

Another point matters for older cars: many Volkswagen dashboards have been opened more than once. A car may have had a Bluetooth kit, alarm, amplifier, navigation unit or previous aftermarket radio removed before you bought it. Those old changes can leave abandoned connectors or taped joints that look factory at first glance. Slow inspection is not wasted time; it is how you avoid repairing someone else’s shortcut twice.

What owners need to know first

People searching for Volkswagen stereo wiring color diagram usually want one of four outcomes: connect an aftermarket stereo, repair a damaged factory harness, identify speaker wires, or troubleshoot a no-power/no-sound radio fault. The article therefore needs to answer the workflow, not just print a color list.

A strong Volkswagen stereo wiring color diagram answer also separates old ISO-era cars from later infotainment systems, because the installation logic changes when data communication replaces simple accessory wiring.

Before You Touch The Harness

The first rule of Volkswagen stereo wiring color diagram work is to pause before cutting. Disconnecting the battery may be sensible for physical wiring work, but remember that some vehicles may require radio codes, window calibration or steering-angle relearn after power interruption. Check the owner’s manual and keep the key away from the ignition while connectors are exposed.

Use the official Volkswagen owner resources for model-specific basics, VIN-related information and maintenance context. Volkswagen’s owner manual portal is available at Volkswagen Owner’s Manuals. If you are dealing with an electrical fault rather than an installation, also check recall and safety information through NHTSA recalls before assuming the radio is the only problem.

For safety, Volkswagen stereo wiring color diagram work should be done with patience, good lighting and enough time to stop if the harness does not match the expected layout.

Tools Needed For Safe Identification

Volkswagen stereo wiring color diagram becomes much safer with the right basic tools. A digital multimeter is essential. A trim tool prevents broken dashboard clips. A proper vehicle-specific harness adapter avoids cutting the original loom. Heat-shrink, crimp terminals from a known brand and a fuse tap rated for the circuit are better than twisted wires and tape.

If you only have a color chart and no meter, postpone the job. Volkswagen stereo wiring color diagram is not a substitute for measuring power, ground and continuity on the actual car.

Common Volkswagen Wire Color Clues

A useful Volkswagen stereo wiring color diagram guide can discuss common clues, but every row below must be treated as a starting point, not a final answer. Volkswagen wiring often uses brown for ground, red or red-striped wires for battery feeds, blue/white for antenna or amplifier-related power in some older applications, and paired colors for speakers. Yet the actual function depends on connector and model year.

The most dependable Volkswagen stereo wiring color diagram habit is to write down both the color and pin position before disconnecting anything, especially if the vehicle already has aftermarket parts.

Quadlock Versus ISO Connectors

Volkswagen stereo wiring color diagram becomes much clearer once you identify the connector family. Older installations may use ISO-style blocks with power and speaker sections. Many later Volkswagen models use a Quadlock connector that groups power, speakers, data and accessory circuits into a large locking plug. The physical connector tells you more than wire color alone.

If the car has a Quadlock plug, avoid forcing a universal ISO adapter without checking pin assignment. Good adapters are sold for the exact model year and radio type, and better kits include a CAN-bus interface for accessory power, illumination, steering wheel controls and parking-sensor audio retention.

For many late-model cars, Volkswagen stereo wiring color diagram begins with selecting the correct Quadlock adapter rather than probing for a wire that the factory never provided.

Connector Identification Table

Power Wires: Constant, Accessory And Ground

The power side is where Volkswagen stereo wiring color diagram mistakes cause the most frustration. Constant 12V keeps memory alive. Accessory or switched power tells the stereo when to turn on. Ground completes the circuit. If constant and accessory are reversed, the radio may forget presets, stay on after the key is removed or drain the battery.

On CAN-bus cars, the factory radio may not have a conventional switched wire in the radio plug. A CAN interface reads vehicle data and provides a clean accessory output for the aftermarket stereo. This is not a luxury; it is often the correct way to install the head unit without disturbing other modules.

In practical terms, Volkswagen stereo wiring color diagram should answer whether the radio needs a true accessory feed, a CAN-generated accessory output, or a retained factory amplifier signal.

Speaker Wires And Polarity

Volkswagen stereo wiring color diagram searches often come from owners who have sound, but the sound is thin. That can happen when one speaker is wired out of phase. The speaker moves opposite to the others, reducing bass and making the stereo feel weak even though all speakers are active.

Do not use a high-current test light on unknown audio wires. Use a tone generator, continuity checks at the speaker end, or a low-risk speaker polarity tool. If the vehicle has a factory amplifier, speaker wires may not run directly from the head unit to each speaker, so tracing becomes more important.

Good Volkswagen stereo wiring color diagram notes include left front, right front, left rear and right rear speaker pairs, plus polarity confirmation after the stereo is powered safely.

CAN-Bus, Steering Wheel Controls And Factory Amplifiers

A modern Volkswagen stereo wiring color diagram answer must explain CAN-bus. Controller Area Network communication lets modules share information. In many Volkswagen models, the radio receives information digitally rather than through one wire for every command. Steering wheel controls, illumination dimming, reverse signal, vehicle speed pulse and parking sensor audio may all depend on an interface.

Factory amplified systems add another layer. Some cars need a remote turn-on signal for the amplifier, while others use data communication. If an aftermarket stereo powers up but there is no sound, the issue may be amplifier activation rather than speaker wiring.

This is where Volkswagen stereo wiring color diagram can prevent wasted work: a no-sound problem may be an amplifier-retention issue, not four failed speaker connections.

Safe Testing Workflow

The safest Volkswagen stereo wiring color diagram workflow is slow and documented. Photograph the original harness, label every adapter, and test before final assembly. If a reading does not match the expected circuit, stop and identify why. The wrong wire may belong to a sensor, data network, airbag-adjacent loom or previous alarm installation.

1. Identify the exact car: model, year, trim, market and factory radio model.
2. Check the owner manual for fuse and radio information.
3. Inspect the harness for cuts, splices, corrosion or non-original adapters.
4. Find ground by continuity to chassis, not by color alone.
5. Find constant 12V with the key off using the multimeter.
6. Confirm whether accessory power exists or requires a CAN-bus adapter.
7. Trace speaker pairs before connecting the head unit.
8. Test the stereo before refitting trim and screws.

When A Wire Color Table Is Not Enough

Volkswagen stereo wiring color diagram can answer a lot, but it cannot replace the vehicle-specific diagram when the car has premium audio, navigation, parking sensors, factory Bluetooth, reversing camera or modified wiring. A wire may change function across years, and imported vehicles may not match a chart written for another market.

In those cases, use a paid service manual, factory repair information, or a professional installer. The money saved by guessing can disappear quickly if a body control module logs faults or the battery drains overnight.

Think of Volkswagen stereo wiring color diagram as a map legend, not the map itself. The exact map is the vehicle-specific service information matched to the car.

Internal Guides For Related Diagnostics

If you are comfortable reading electrical information, the Xmotoparts guide to the 2.0 TDI 140 engine diagram is useful because it shows how to approach diagrams without confusing labels with repairs. Electrical fault logic also overlaps with Toyota Corolla electronic key system fault, where power supply and module communication matter. For key and immobilizer context, see Opel Mokka key programming.

Troubleshooting Table

Best Practices For Aftermarket Stereo Installation

Volkswagen stereo wiring color diagram work is cleanest when the original vehicle harness remains untouched. Use a plug-in adapter, solder or crimp only on the adapter side, and keep the factory loom reversible. Secure the harness so it cannot rattle, pull on connectors or rub against metal brackets.

Do not hide bare copper behind the dashboard. Do not twist wires and wrap them with household tape. Do not assume the old installer was correct. If the car already has cut wiring, repair it methodically with proper terminals, heat-shrink and a diagram matched to the VIN whenever possible.

When done correctly, Volkswagen stereo wiring color diagram should leave the dashboard cleaner than you found it, with labeled adapters and no mystery splices for the next owner.

After the stereo powers up, test more than music. Confirm that the key-off behavior is correct, the battery is not being drained, radio reception works, steering-wheel buttons behave normally, parking sensors still make sound where equipped, and no warning lights appear after a short drive. A neat installation is both electrical and functional.

FAQ

Is brown always ground on Volkswagen radio wiring?

Brown is commonly used for ground in Volkswagen wiring, but Volkswagen stereo wiring color diagram work should still verify ground with a multimeter. Previous repairs, faded insulation and non-factory wiring can mislead you.

Can I install a stereo without a CAN-bus adapter?

Sometimes yes, especially on older cars, but many modern Volkswagen models need a CAN-bus interface for clean accessory power and retained functions. Guessing can cause battery drain or lost steering controls.

Where is the ignition wire on a VW radio harness?

On some vehicles it may not exist as a simple switched 12V wire at the head unit. The factory radio may wake through data communication, which is why a proper interface can be required.

Can a wrong stereo wire damage the car?

Yes. Incorrect wiring can blow fuses, damage the head unit, disturb data lines or create module faults. The safe method is connector identification, meter testing and a model-specific adapter.

Should I follow an online color chart?

An online chart can be a starting point, but it should never be the only evidence. Confirm the connector, pin position, voltage and continuity before making a permanent connection.

Final Advice

Volkswagen stereo wiring color diagram is useful only when it leads to verification, not guessing. Volkswagen radio wiring varies by model, market, radio generation and factory options, so the reliable method is to identify the connector, test every circuit and preserve the original harness. A careful installer with a multimeter and the right adapter will usually get a cleaner result than someone who trusts wire colors alone.
